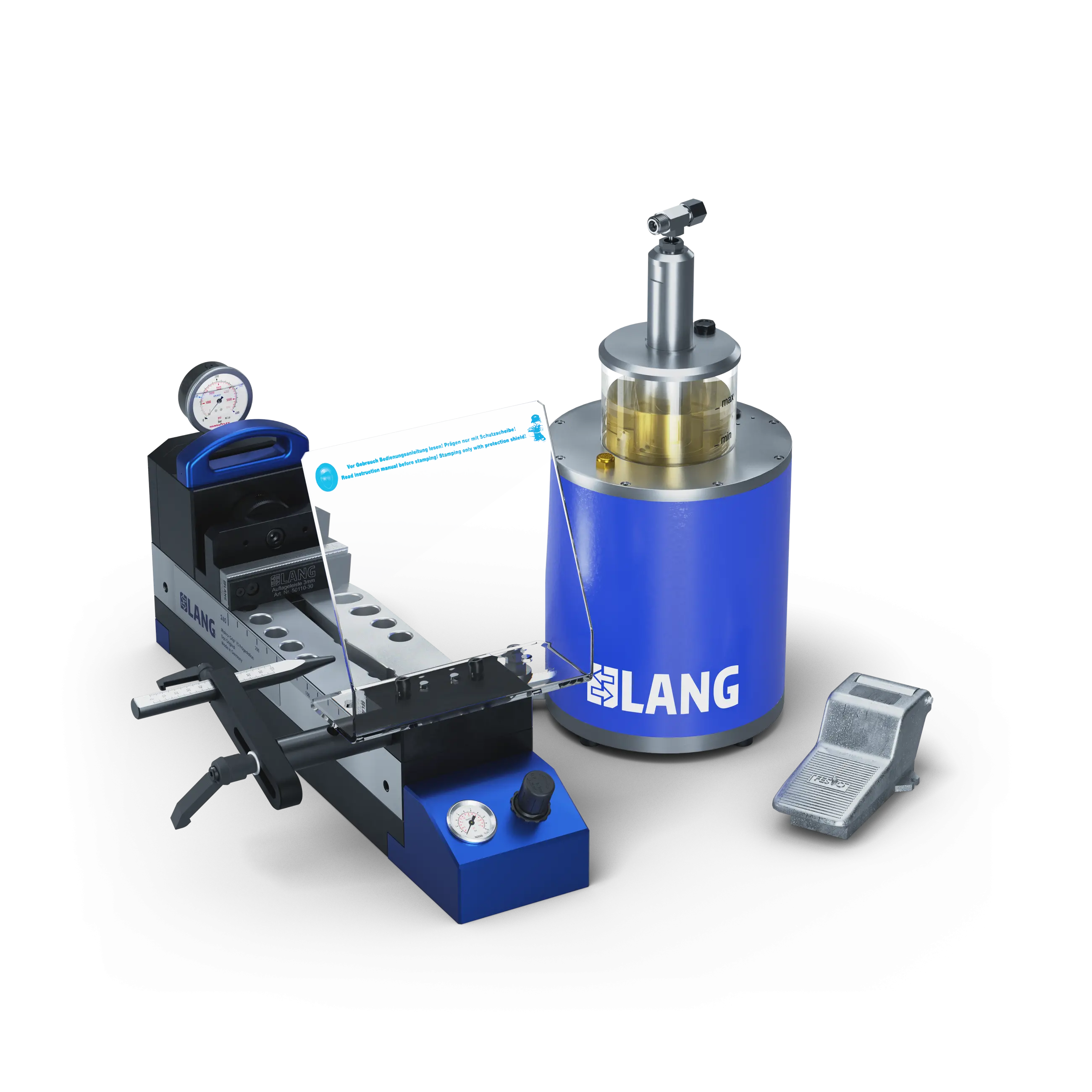

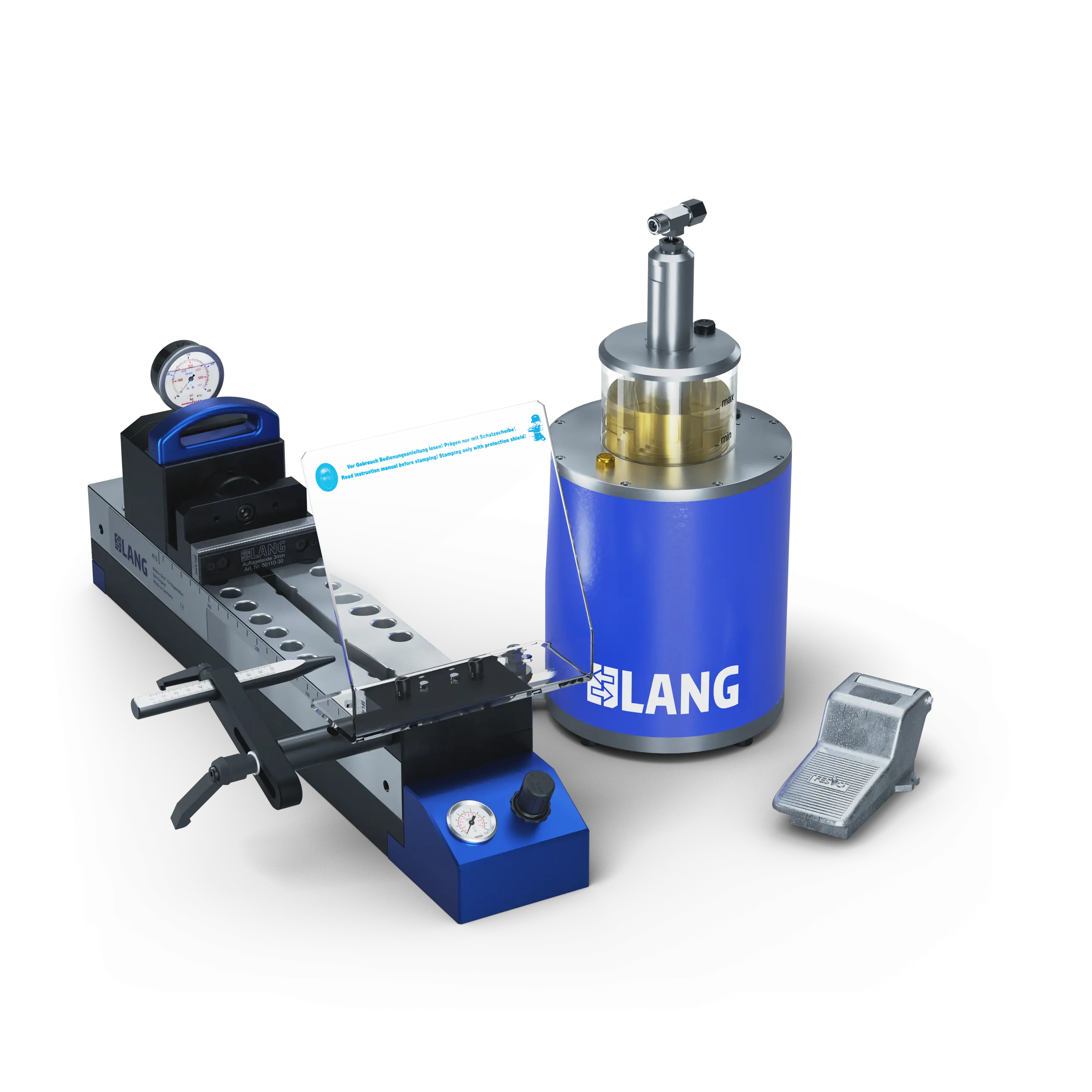

Makro•Grip® FS, Stamping Unit : Extended, with High-End Stamping Jaws
Product Code - 51410-HE
Key data at a glance
With the new Makro•Grip® FS stamping units, the previous version has been significantly modified and upgraded. A large number of changes and improvements as well as practical accessory components significantly simplify and accelerate the pre-stamping of workpiece blanks. The new stamping jaws with 4 rows of teeth and continuous serration increase performance in the actual clamping process of 5-sided machining. This stamping unit variant is designed for materials up to 45 HRC. Thanks to the extension of this version, it is now possible to pre-stamp workpiece blanks up to a length of 410 mm. This extends the range of the stamping unit and also takes into account the maximum clamping range of the Makro•Grip® Ultra clamping system.
Further Information
Scope of delivery: 1 x Stamping Vise

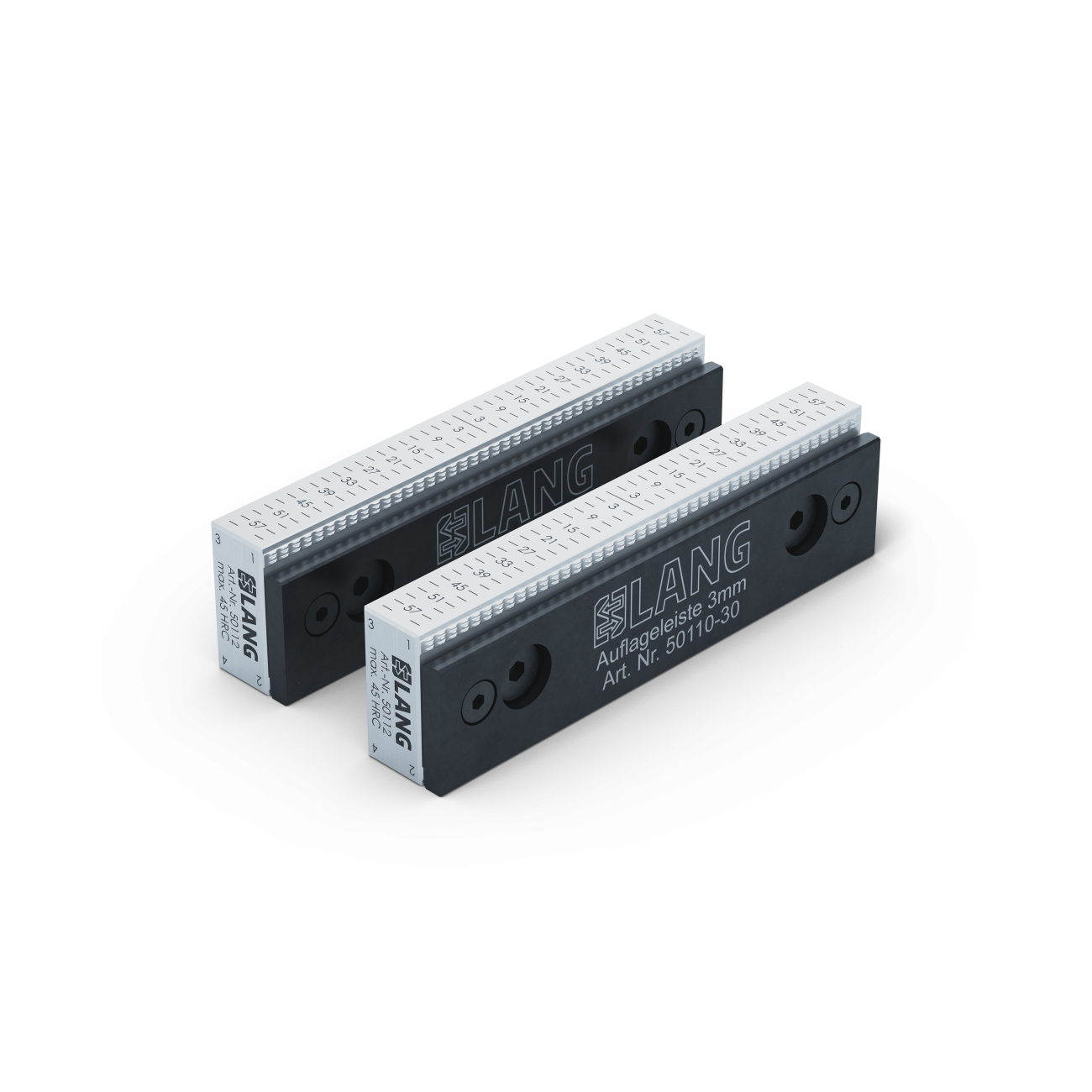

1 x 50112: Stamping Jaws, High-End, for materials up to 45 HRC
1 x 41250: Pneumatic-Hydraulic Pressure Multiplier, for all stamping units
1 x 50153: Gauging Blocks, for measuring wear of Stamping Jaws
1 x 41261: End-Stop, for stamping unit
1 x Protection Shield
Makro•Grip® FS Stamping Technology and Raw Part Clamping
The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Makro•Grip® FS is the further development of this product. Its compact design and high holding forces make the Makro•Grip® FS 5-Axis Vise the ideal clamping device for machining raw parts.
