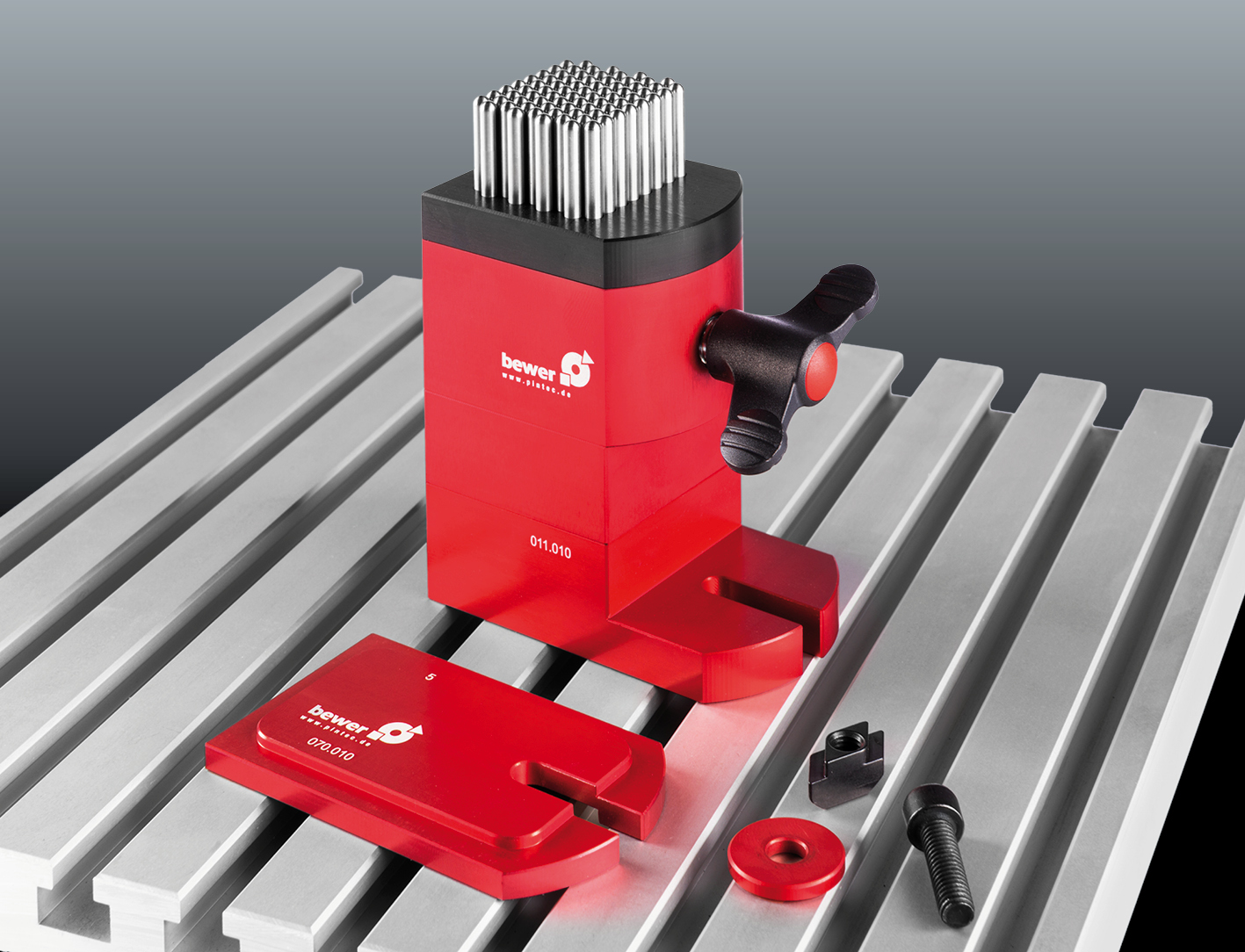

Flex Form Module for T-Slot Profile Panels

Product Code - 011.010

Flex Form Module for T-Slot Profile Panels

Product Code - 011.010



Catalogues
1. PINTEC E-Catalogue
2. Pintec Power

Key data at a glance

Pins: 76

Pin Ø: 3.5 mm

Pin Stroke: 20 mm

Pin Field Dimension: 35.3 mm x 31 mm

Total Dimension: 78 mm x 46 mm

Total Height: 107 mm

Further Information

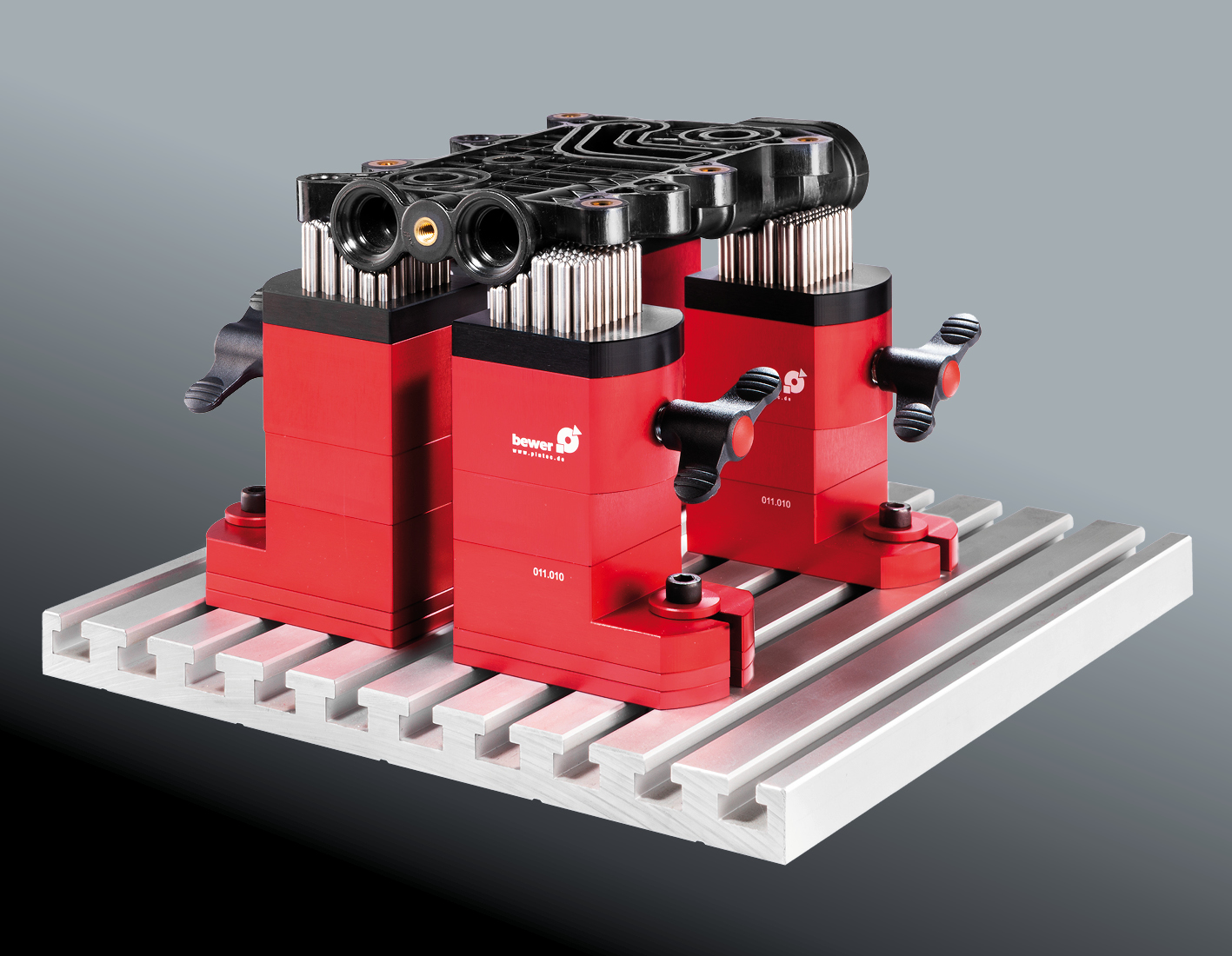

Low overall height with a clip to mount on T-slot profile plates for M6 including rhombic nut.

Downloads

Spare parts and individual components
