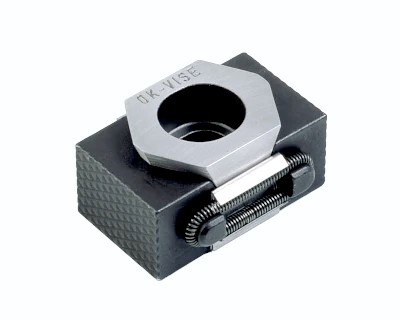

OK-Vise Machinable & Smooth Jaw Clamp Model
Product Code - BK2-VT+3S
Key data at a glance
When you need to have a customized jaw that fits exactly to your workpiece we recommend our machinable jaw model.
These clamps are available with extended jaws and can be machined to suit the geometry of the workpiece. The smallest model can be machined up to 3 mm and the larger ones up to 5 mm:
- B-size clamp = 3 mm
- D- and F-size clamps = 5 mm
One popular variation of these is a model with one machinable jaw. Then the other jaw is typically smooth ( +3S, +5S )
Further Information
Jaw Type
Machinable & Smooth
Model Type
Metric Model

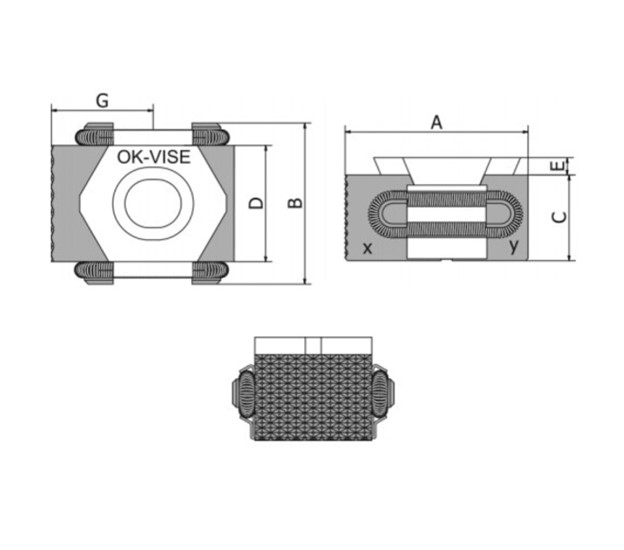

A minimum (mm)
30
A optimum (mm)
32
A maximum (mm)
34
B (mm)
29
C (mm)
15
D (mm)
21
E (mm)
2.5
G minimum (mm)
16.5
G optimum (mm)
17.5
G maximum (mm)
18.5
Socket Head Screw DIN 912
M8 X 20
Pressing Force of Jaws, (max) kN
22
Tightening Torque, (max) Nm
43
Weight (g)
65
Hardness of Jaws HRCX
30-34
Hardness of Jaws HRCY
48-52
