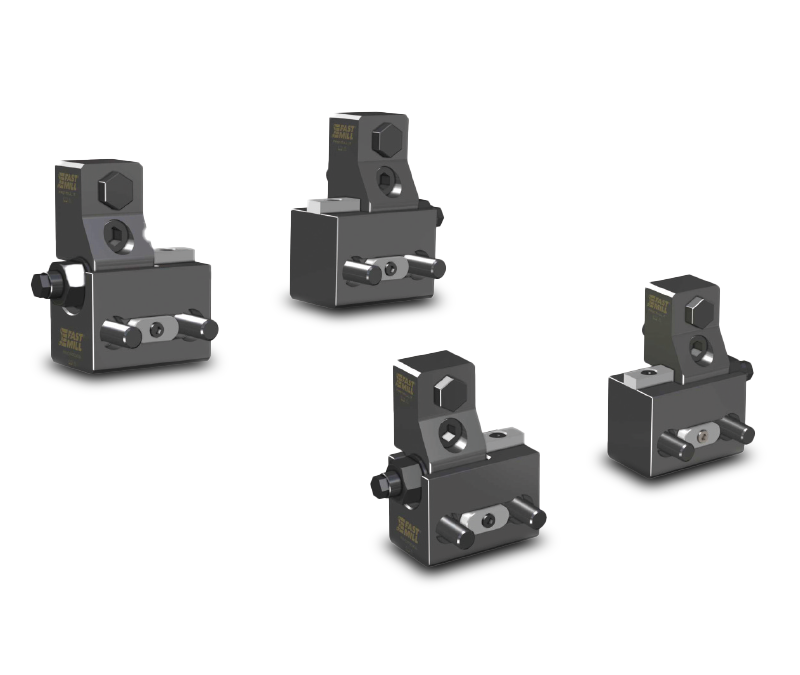

FastMill Heavy Vertical Clamping
Product Code - FMVCHP0024036
Key data at a glance
The FastMill vertical clamping system is used to clamp heavy workpieces in vertical positions. It is a robust element that allows ease of use. It also allows the handling of a large workpiece in complete safety. A single operator can position himself at a safe distance from the initial movement to the start of machining.
Further Information
| SET CONFIGURATION | N° |
| Special bush Ø36-36 mm h 20 mm | 8 pieces |
| TE M24X60 UNI 5739-8,8 | 4 pieces |
| 31X56 UNI 6592-69 washer | 4 pieces |
| Feather key 28X16X60 DIN6885 C | 4 pieces |
| M30 NUT UNI 5589 -8G | 4 pieces |
| TCEI M24X80 UNI 5931-12,9 screw | 4 pieces |
| TCEI M10X20 UNI 5931-12,9 screw | 4 pieces |
