Avanti 77, Profile Clamping Vise

Product Code - 44200-77

Add To Inquiry List

Avanti 77, Profile Clamping Vise

Product Code - 44200-77

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Lang Workholding
3. 2017 LANG Workholding
4. 2025 Lang Speciality Products
5. Lang MakroGrip Ultra
6. Automation
7. Zero-Point Clamping
8. LANG Aero & RoboTrex Compact.

Key data at a glance

The Avanti vise with quick jaw exchange system is a flexible clamping solution for profile and pre-machined parts thanks to its soft, machinable top jaws. The patented interface between base and top jaws ensures the highly accurate positioning of the top jaws, which are clamped with just one screw and allow jaws to be changed in a matter of seconds.

Further Information

CLAMPING RANGE

0 - 205 mm (0" - 8.07")

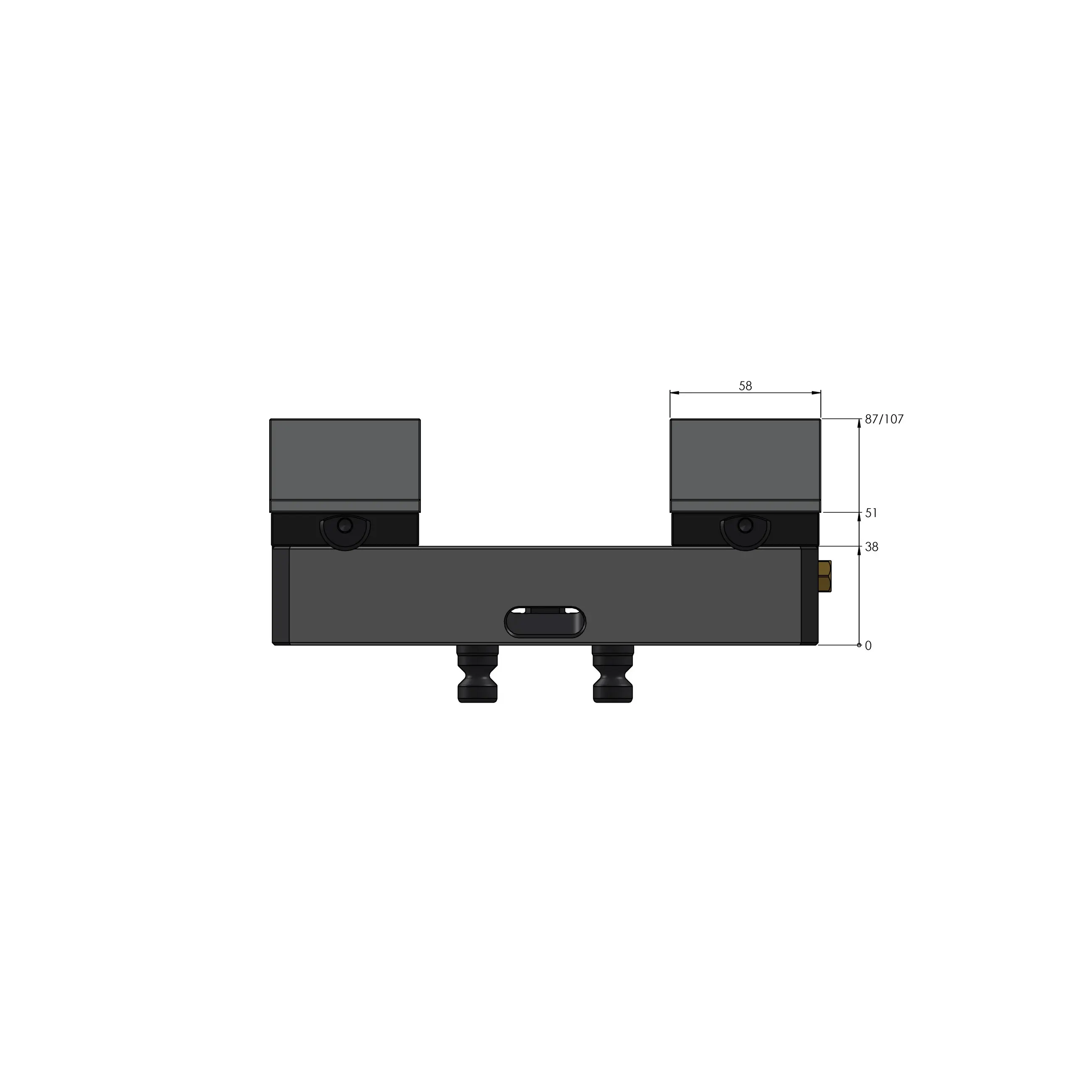

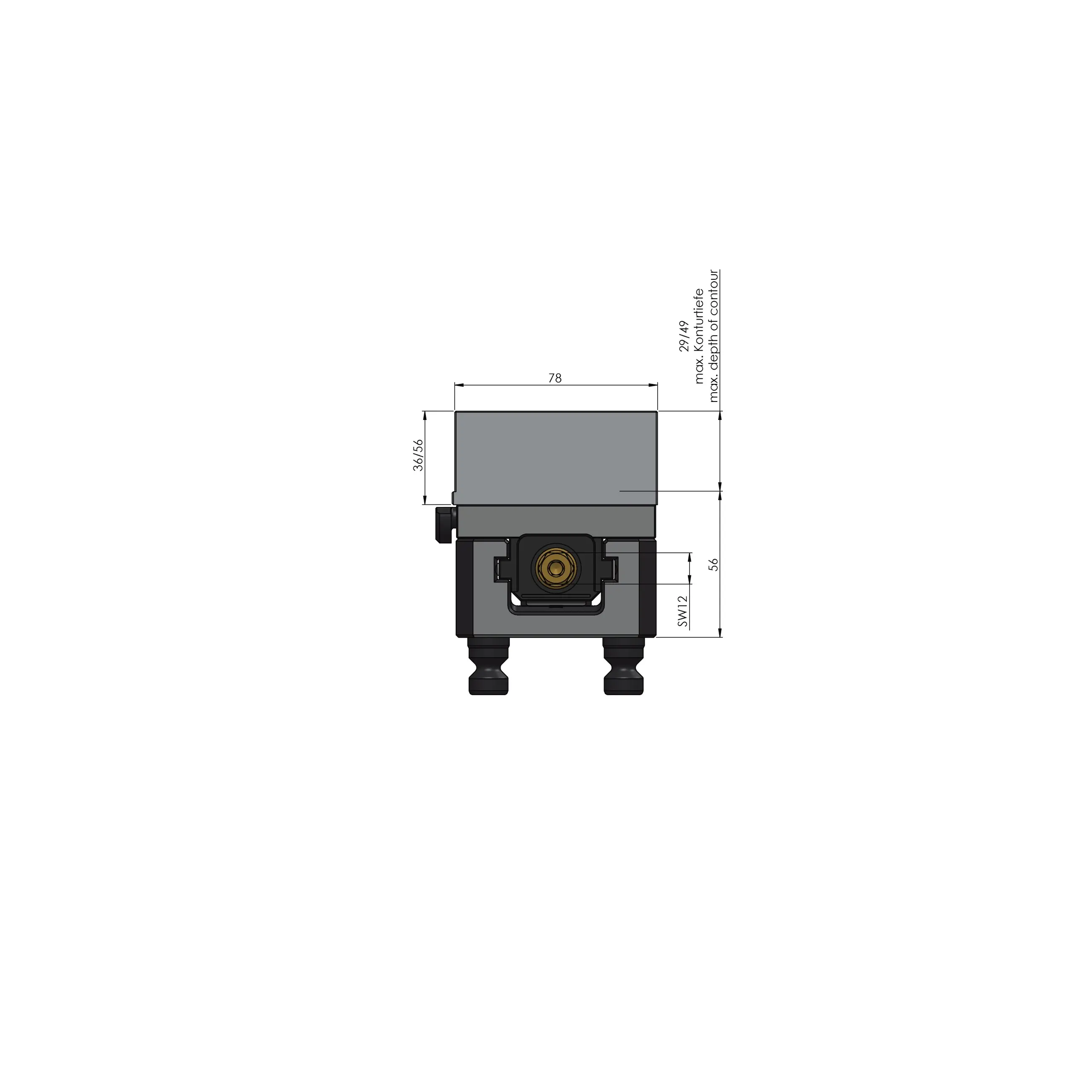

DIMENSIONS

210 x 77 x 51 mm (8.27" x 3.03" x 2.01")

CLAMPING METHOD

by friction

WORKPIECE SHAPE

cubic / cylindrical / asymmetric

PACKAGING UNIT

1 Set

WEIGHT

4.8 kg (10.58 lbs)

MATERIAL

Steel

More Options:

Torque

60 Nm

Maximum allowed torque

Clamping stud size

16 mm (0.63")

Diameter of clamping studs

Clamping force

14.000 N

Clamping force at maximum torque

Centring accuracy

±0,02 mm

Centring tolerance of vices

Grid system

52 mm (2.05")

Zero-point pitch

Notice:

Scope of delivery:

Benefits Avanti

Quick jaw exchange Jaw exchange in just a few seconds with just one screw

Cost benefits Extremely affordable top jaws available in different heights and materials

Accuracy Highly precise positioning of the top jaws thanks to the patented interface

Conventional Workholding

„Conventional Workholding“ offers a multitude of options for clamping round or pre-machined parts. To solve the respective clamping task, the operator can choose between a 6-jaw chuck, two collet chucks and three different types of self-centering vises, whose jaw types are perfectly suited for challenging 2nd operations.
