Makro•Grip® 77, 5-Axis Vise
Product Code - 48085-46
Key data at a glance
The Makro•Grip® 5-axis vise is the ideal clamping device for the 5-axis machining of blank parts. Due to its compactness and low interference contours, it offers best accessibility to the workpiece. Thanks to the form-closure clamping principle, which requires only a low level of clamping pressure and can, therefore, be clamped without distortion or wear, it achieves the highest holding forces and guarantees maximum process reliability, even with high-tensile material.
Further Information
CLAMPING RANGE
0 - 85 mm (0" - 3.35")
DIMENSIONS

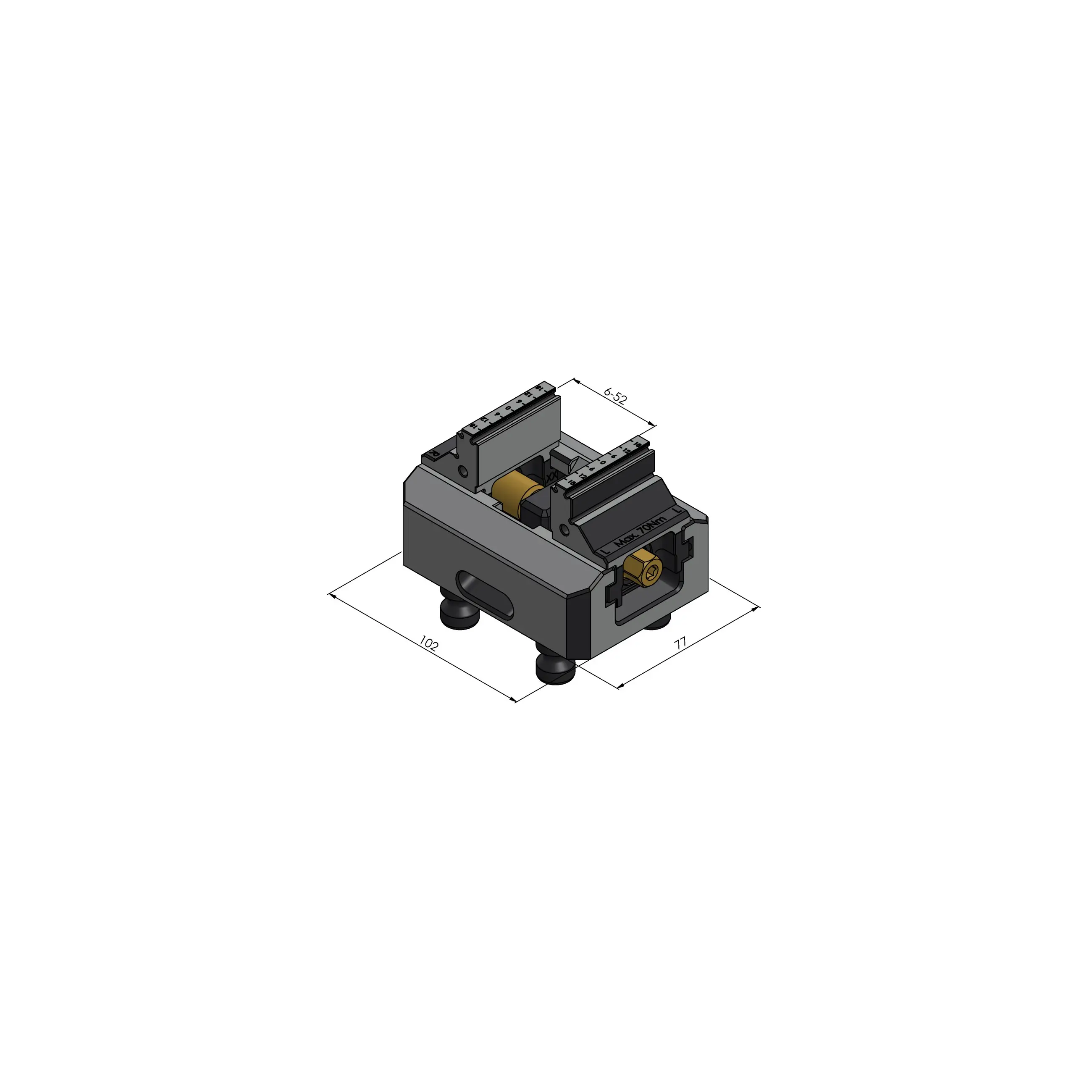

102 x 77 x 65 mm (4.02" x 3.03" x 2.56")
CLAMPING METHOD
by form-fit / by friction
WORKPIECE SHAPE
cubic
PACKAGING UNIT
1 Set
WEIGHT
2.1 kg (4.63 lbs)
MATERIAL
Steel
Vise
46 mm
