Makro•Grip® 125, 5-Axis Vise
Product Code - 48205-77
Key data at a glance

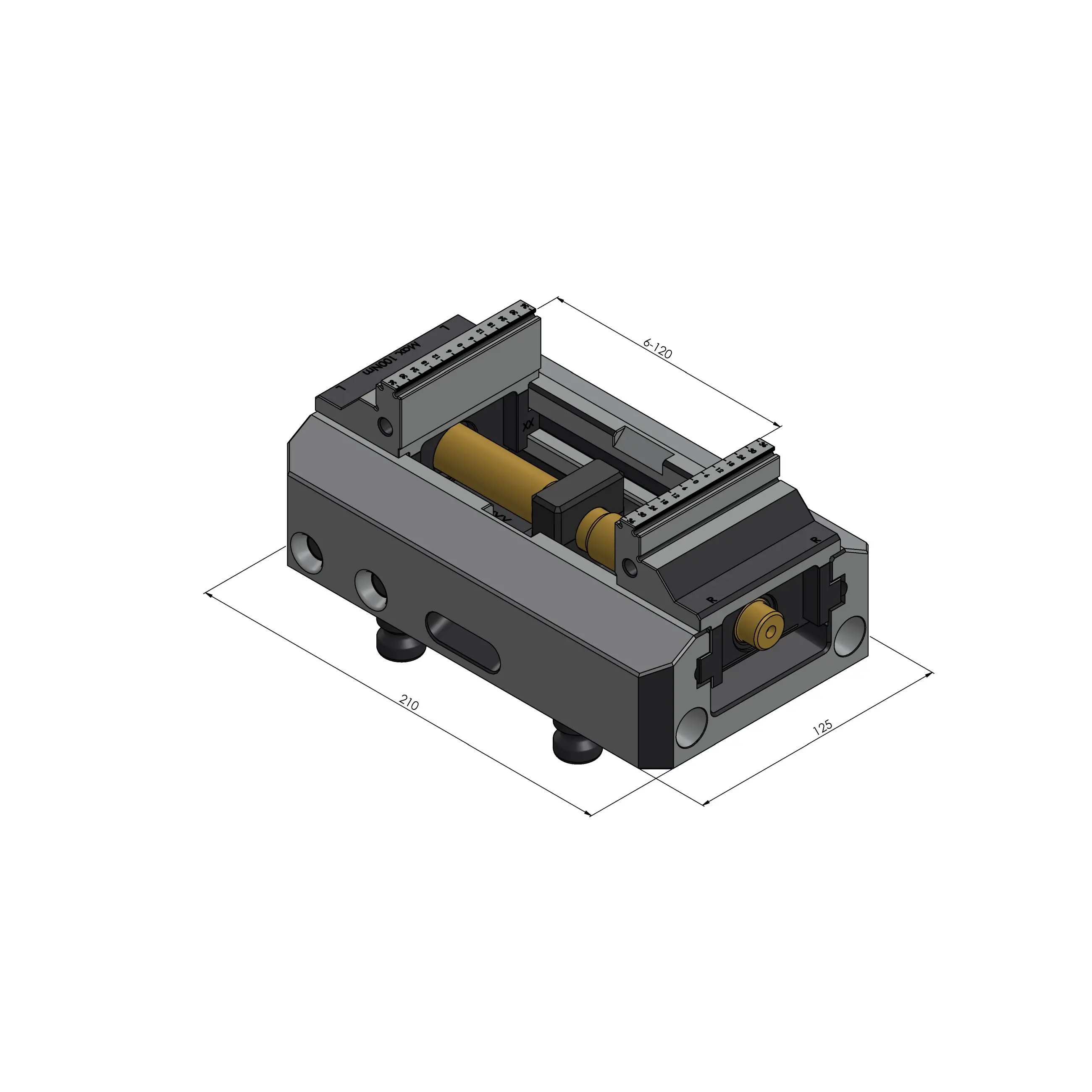

This version of the Makro•Grip® 125 has a base body length of 210 mm and a width of 125 mm. The jaw width is 77 mm. The 5-Axis Vise is not only in great demand for manual CNC machining, but can also be used as an automation vise in the RoboTrex 96 automation system. Without an additional pallet, it is taken directly from the automation gripper and loaded into the machine tool. Thanks to its slim design, it requires very little space on the automation trolley, which ensures a high storage capacity on a small footprint.
Further Information
CLAMPING RANGE
0 - 205 mm (0" - 8.07")
DIMENSIONS
210 x 125 x 89 mm (8.27" x 4.92" x 3.5")
CLAMPING METHOD
by form-fit / by friction
WORKPIECE SHAPE
cubic
PACKAGING UNIT
1 Set
WEIGHT
9.1 kg (20.06 lbs)
MATERIAL
Steel
Vise
77 mm
