Makro•Grip® 125, 5-Axis Vise
Product Code - 48205-125
Key data at a glance

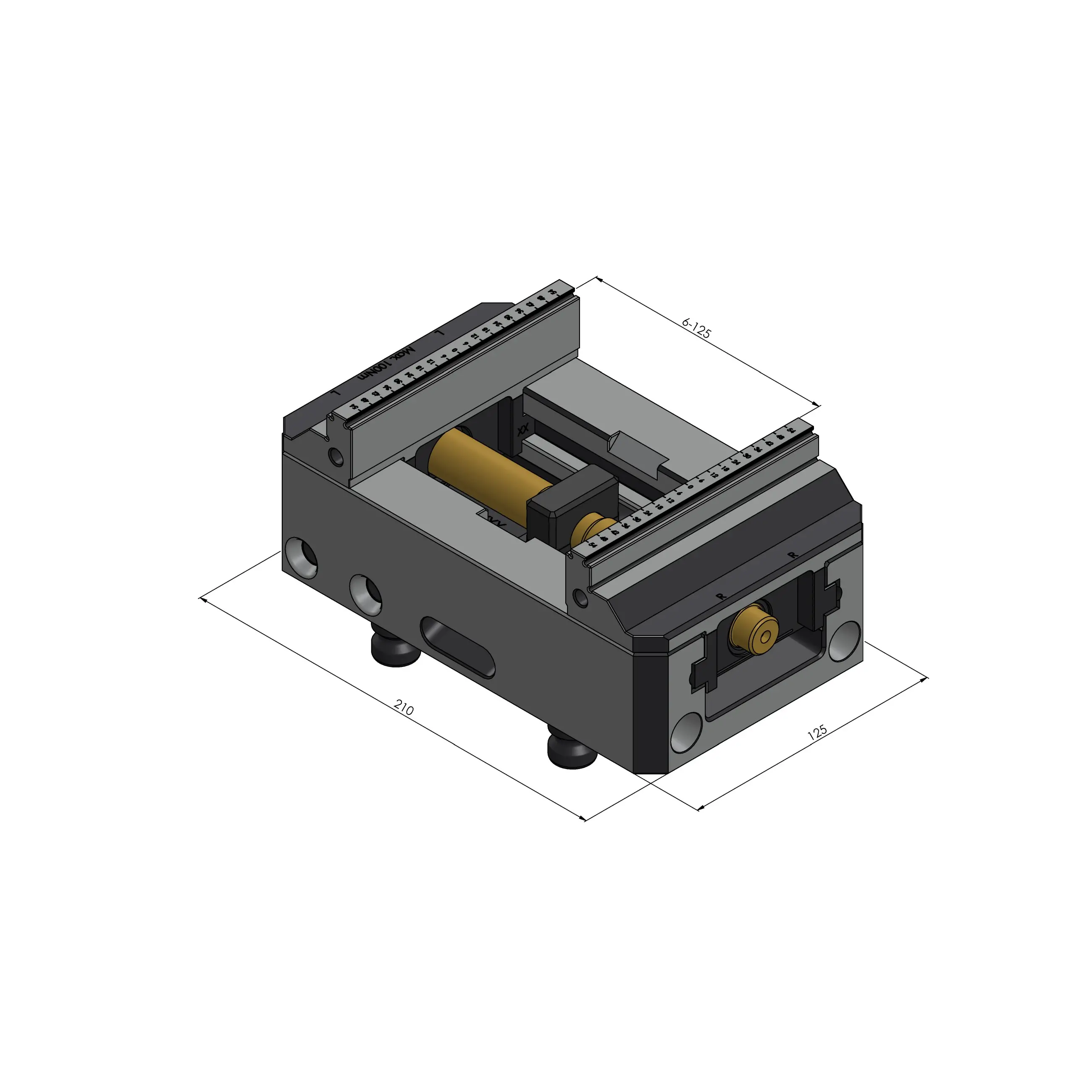

The Makro•Grip® 5-axis vise with a jaw width of 125 mm and a clamping range of up to 205 mm offers maximum process reliability in 5-axis machining. Due to its compact design and low interference contours, the workpiece is ideally accessible for the tools used. Thanks to its form-fit clamping, it achieves maximum holding forces despite low clamping pressure. Even with high-tensile material, it is able to clamp workpieces without distortion. The gentle clamping also means that there is no wear on the 5-axis vise. This vise version can be used both in manual CNC machining and automated with the RoboTrex 96 automation system.
Further Information
More Options:
Torque
100 Nm
Maximum allowed torque

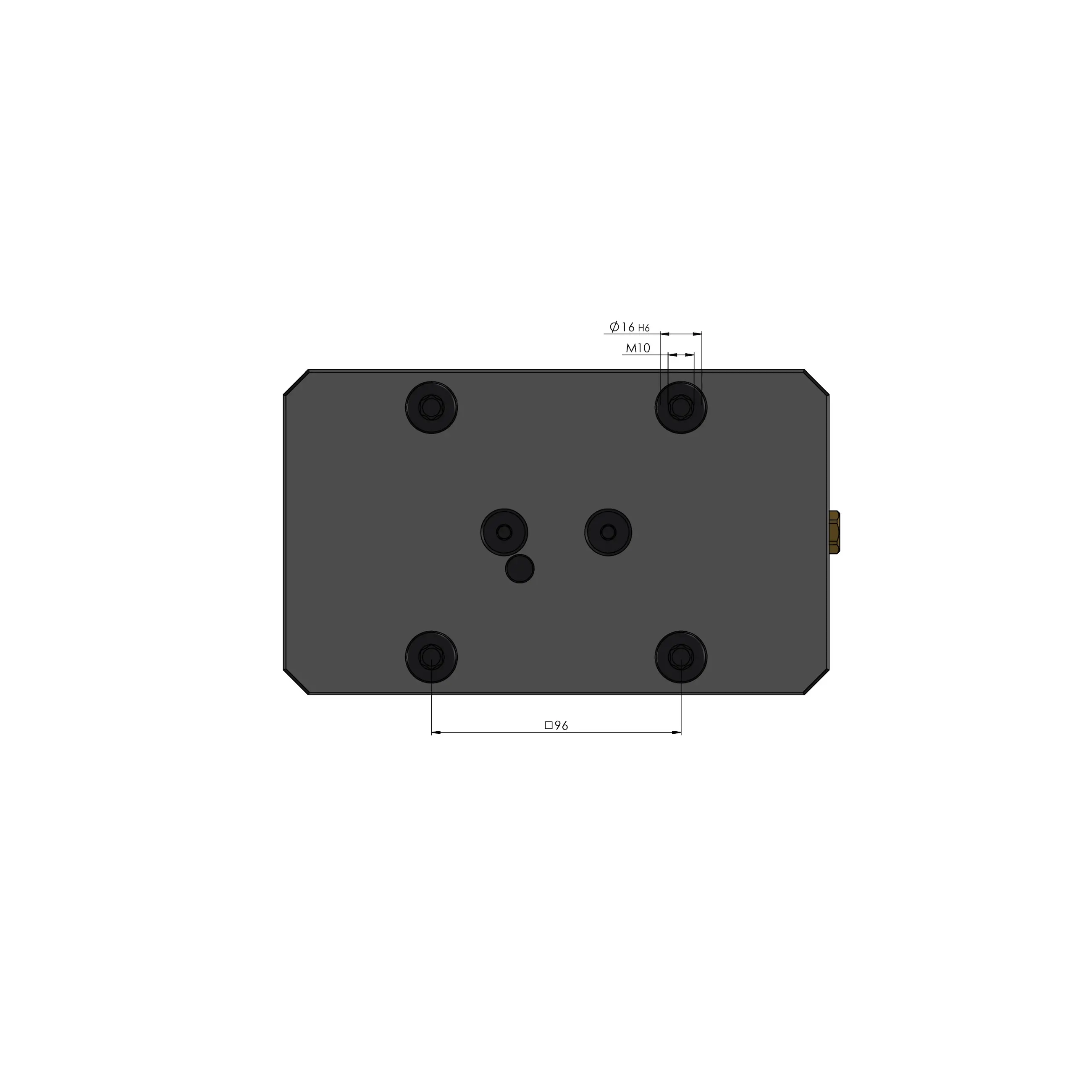

Clamping stud size
20 mm (0.79")
Diameter of clamping studs
Clamping force
20.000 N
Clamping force at maximum torque
Centering accuracy
±0,02 mm
Centering tolerance of vises
Automatable
Yes
Automation interface included
Grid system
96 mm (3.78")
Zero-point pitch
Notice:
Can be used in the RoboTrex automation system.
Scope of delivery:
Single components features:
Makro•Grip® Stamping Technology and Raw Part Clamping
The Makro•Grip® 5-Axis Vise and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vise the ideal clamping device for machining raw parts.
