Makro•Grip® 77, 5-Axis Vise
Product Code - 48200-77
Key data at a glance

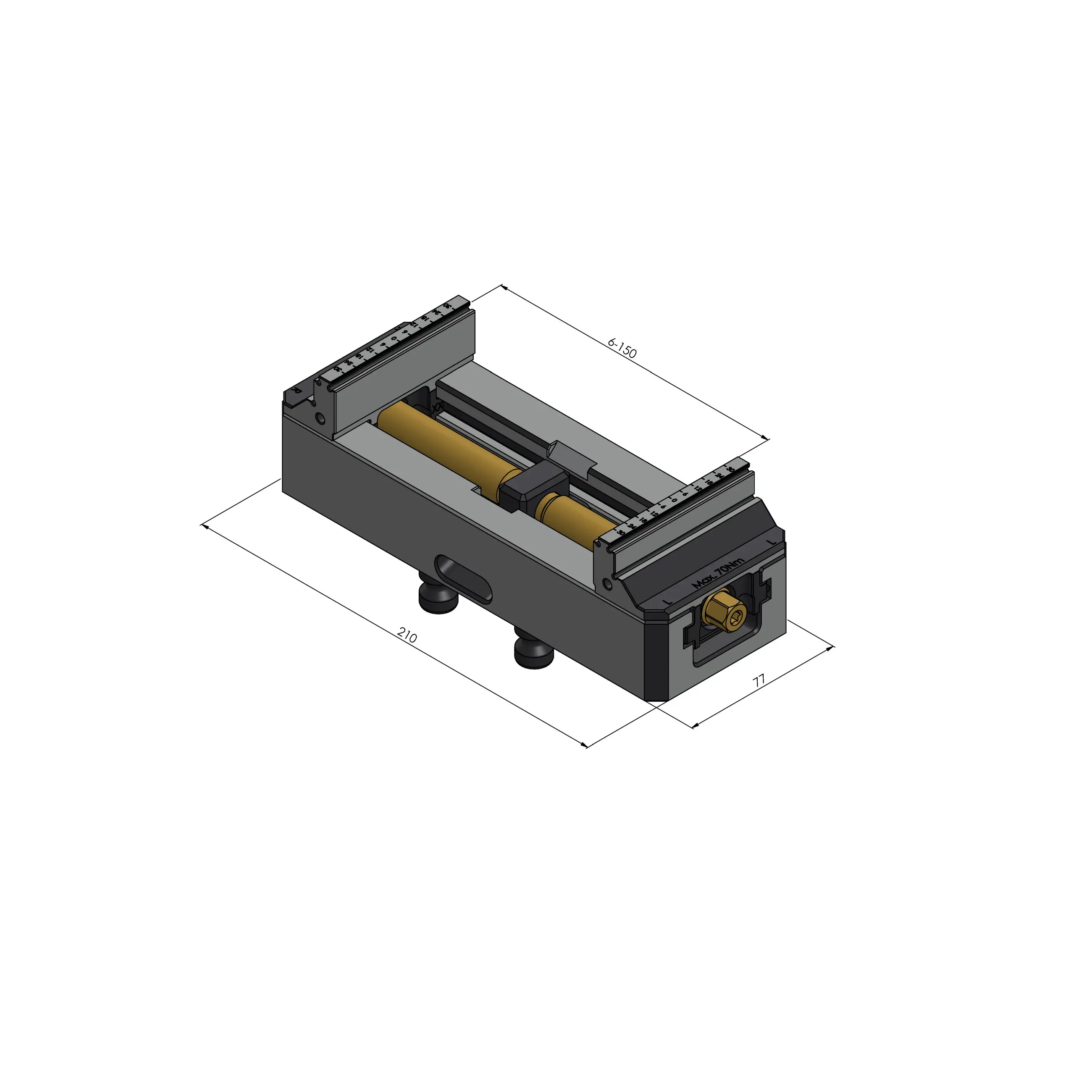

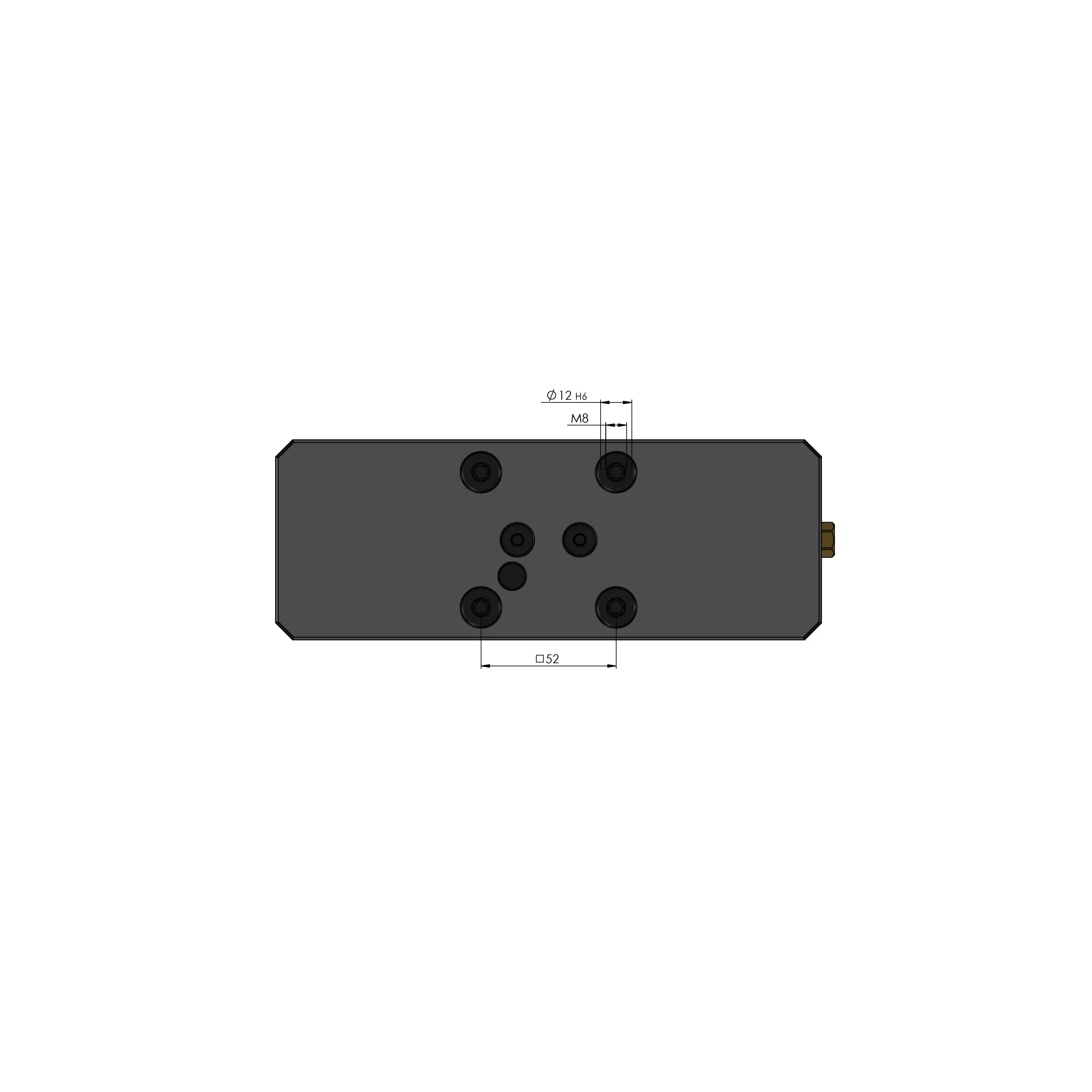

With a base body length of 210 mm, this vise version is the longest among the 5-Axis Vises with a base body width of 77 mm. Its jaw width is also 77 mm. The 5-Axis Vise made of case-hardened steel is extremely rigid and ideally suited for the challenges of 5-axis machining. The centering vise is equipped with clamping studs on its bottom for quick and highly accurate set up in the Quick-Point® zero point clamping system.
Further Information
CLAMPING RANGE
0 - 200 mm (0" - 7.87")
DIMENSIONS
210 x 77 x 65 mm (8.27" x 3.03" x 2.56")
CLAMPING METHOD
by friction
WORKPIECE SHAPE
cubic
PACKAGING UNIT
1 Set
WEIGHT
4.2 kg (9.26 lbs)
MATERIAL
Steel
Vise
77 mm
