Makro•Grip® 77, HAUBEX 5-Axis Vise
Product Code - 61085-46
Key data at a glance
HAUBEX uses a modified version of the Makro•Grip® as the workholding device. The slim design of the 5-Axis Vice and the narrow jaw width of 46 mm ensure ideal accessibility in 5-sided machining of blanks. The maximum workpiece size of approx. 80 × 75 × 70 mm is given by the height and diameter of the workholding hood. Examples of possible dimensions and a formula for their calculation can be found on the data sheet in the downloads.
Further Information
More Options:
Torque
60 Nm
Maximum allowed torque
Clamping stud size
16 mm (0.63")
Diameter of clamping studs
Clamping force
14.000 N
Clamping force at maximum torque
Centring accuracy
±0,02 mm
Centring tolerance of vices

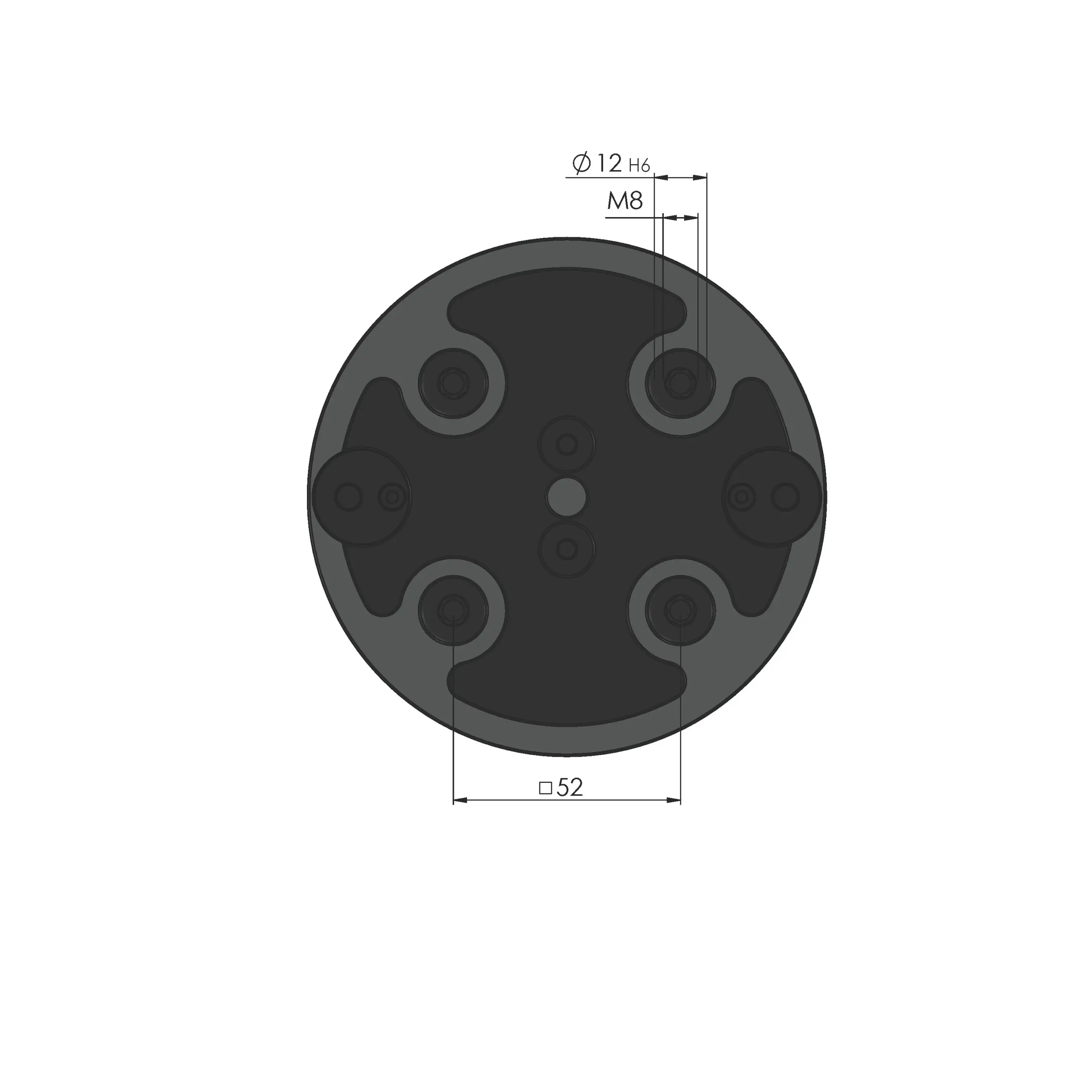

Grid system
52 mm (2.05")
Zero-point pitch
Automatable
Yes
Automation interface included
Notice:
-
Scope of delivery:
Single components features:
Benefits Makro•Grip® HAUBEX 5-Axis Vise
HAUBEX Automation System
HAUBEX can be used on practically any machine tool and flexibly throughout the entire production process. With the tool magazine as the storage medium, in which the workholding hood is stored together with the self-centering vise and workpiece blank and is automatically exchanged into the machine, HAUBEX manages completely without additional handling and storage systems.
