Makro•Grip® 125, 5-Axis Vise, jaw width 125 mm, clamping range 0 - 305 mm
Product Code - 48305-125
Key data at a glance
The Makro•Grip® 5-axis vise with jaw width 125 mm is mainly used for clamping larger workpieces. With its 310 mm long base body, it has a clamping range of up to 305 mm, which means that the centrically clamped workpiece is ideally accessible for the tools used. This allows the use of short tools and results in less vibration as well as longer tool life. At the same time, higher cutting rates can be applied, which reduces machining times and costs.
Further Information
CLAMPING RANGE
0 - 305 mm (0" - 12.01")
DIMENSIONS

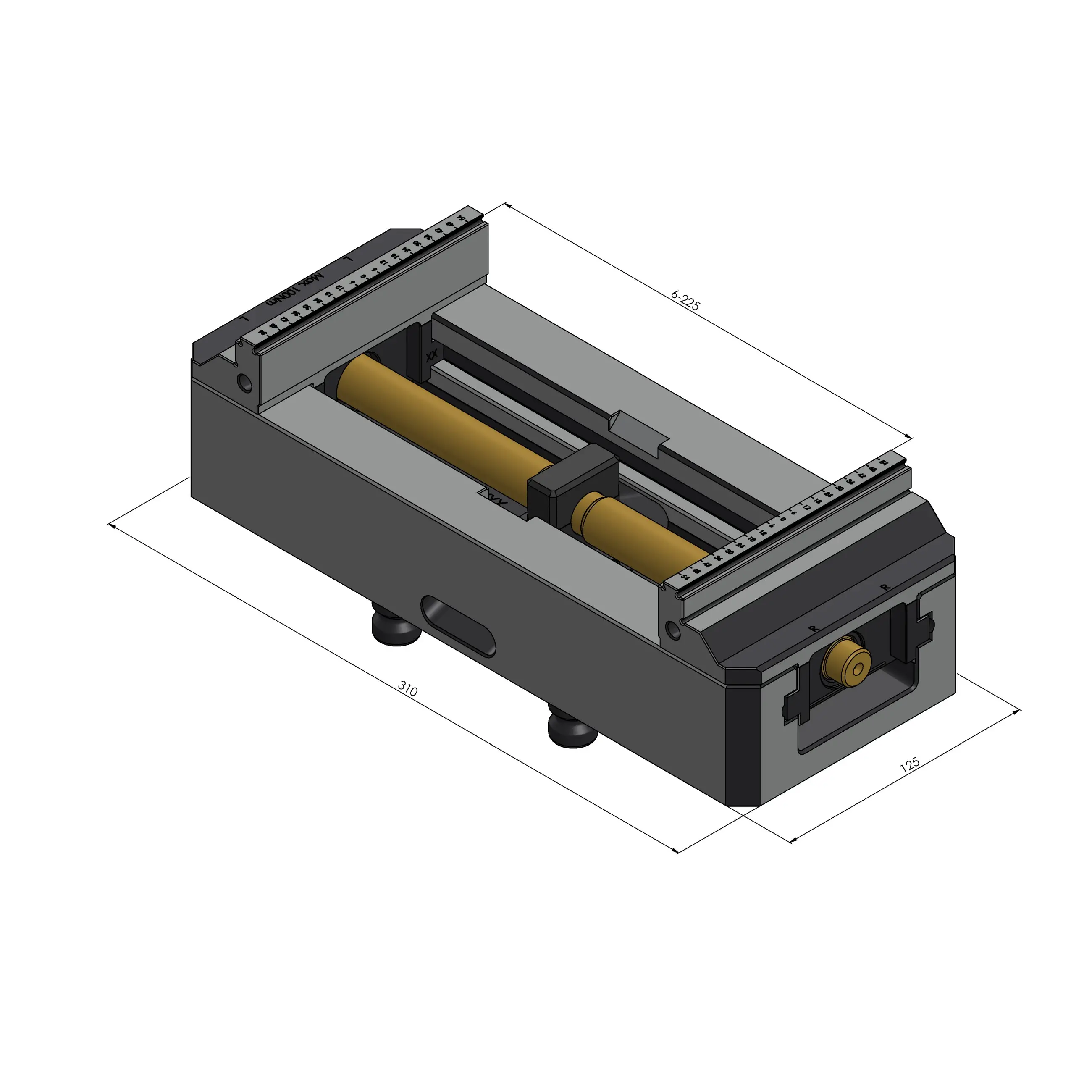

310 x 125 x 89 mm (12.2" x 4.92" x 3.5")
CLAMPING METHOD
by form-fit / by friction
WORKPIECE SHAPE
cubic
PACKAGING UNIT
1 Set
WEIGHT
13.9 kg (30.64 lbs)
MATERIAL
Steel
Vise
125 mm
