Quick•Point® 52, Round Plate ø 116 x 27 mm, without mounting bores

Product Code - 45751

Add To Inquiry List

Quick•Point® 52, Round Plate ø 116 x 27 mm, without mounting bores

Product Code - 45751

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Zero-Point Clamping
3. Lang MakroGrip Ultra
4. Lang Workholding
5. 2017 LANG Workholding
6. Automation
7. 2025 Lang Speciality Products
8. LANG Aero & RoboTrex Compact.

Key data at a glance

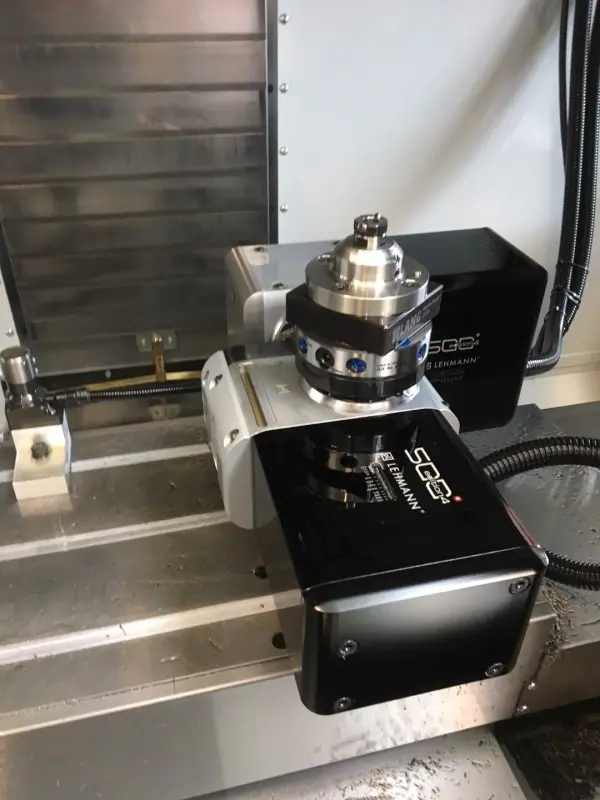

Due to its size, this round plate is a solution for small tables and axes. With a diameter of only 116 mm, it is the most compact of all Quick•Point® zero-point plates. It offers options for creating individual holes, but can also be attached via an adaptation flange, such as on Lehmann rotary tables.

Further Information

DIMENSIONS

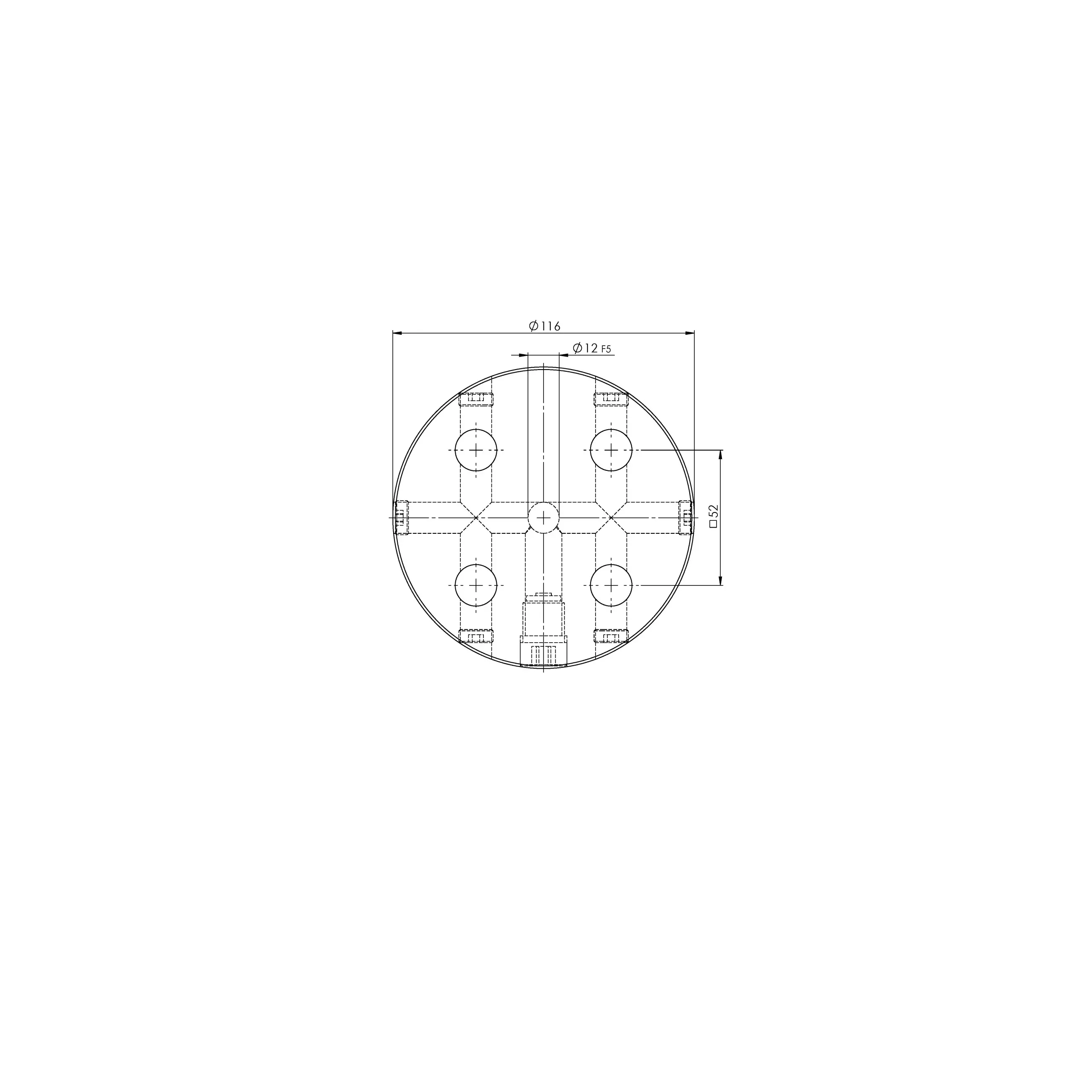

⌀ 116 x 27 mm (4.57" x 1.06")

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

No, but not necessary

KEYWAYS

No, but possible (service)

M5 INDEXING BORES

No, but possible (service)

PACKAGING UNIT

1 Set

WEIGHT

1.9 kg (4.19 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

77 mm (3.03")

Width of compatible vice

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

Notice:

Scope of delivery:

1 x Zero-Point plate 4 x 45052-20: Cover Plugs, ø 16 mm, for 52 mm spacing

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

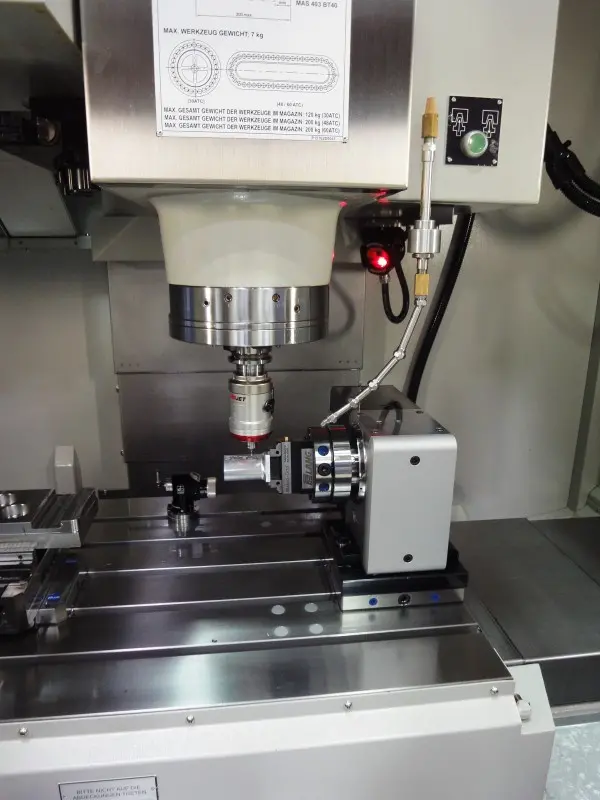

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
