Quick•Point® 52, Grid Plate 104 x 104 x 27 mm, with bores for Quick•Tower tombstone
Product Code - 75600
Key data at a glance
With external dimensions of 104 x 104 mm, this grid plate is one of the smallest in the Quick•Point® series. It has mounting holes for M10 / M12 cylinder head screws. Its hole spacing of 82 x 82 mm is suitable for both dimensions of the Quick•Tower clamping tower for horizontal machining centers, as well as for the smaller 3- and 4-sided clamping towers MT3 and MT4. Customers also like to use it on their own trunnions, towers and angular clamps
Further Information
More Options:
![](https://machinetoolsolutions.ca/uploads/product-custom-files/1697383803652c057bb3960_a.png)
Torque
30 Nm
Maximum allowed torque
![](https://machinetoolsolutions.ca/uploads/product-custom-files/1697383803652c057bb3d8c_b.png)
Vice size
77 mm (3.03")
Width of compatible vice
![](https://machinetoolsolutions.ca/uploads/product-custom-files/1697383803652c057bb4129_c.png)
Clamping stud size
16 mm (0.63")
Diameter of suitable clamping studs
![](https://machinetoolsolutions.ca/uploads/product-custom-files/1697383803652c057bb4597_d.png)
Quick-Lock applicable
Yes
The fast actuation system can be attached
Notice:
-
Scope of delivery:
![](https://machinetoolsolutions.ca/uploads/product-images/1697383680652c0500539ef75600[1].webp)
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

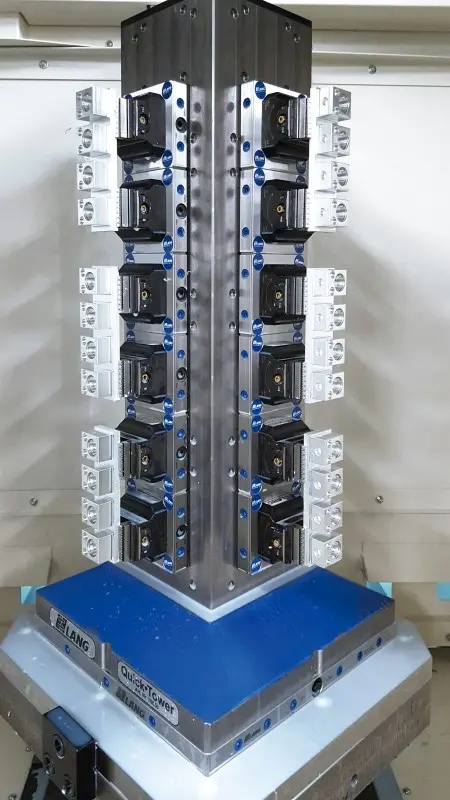

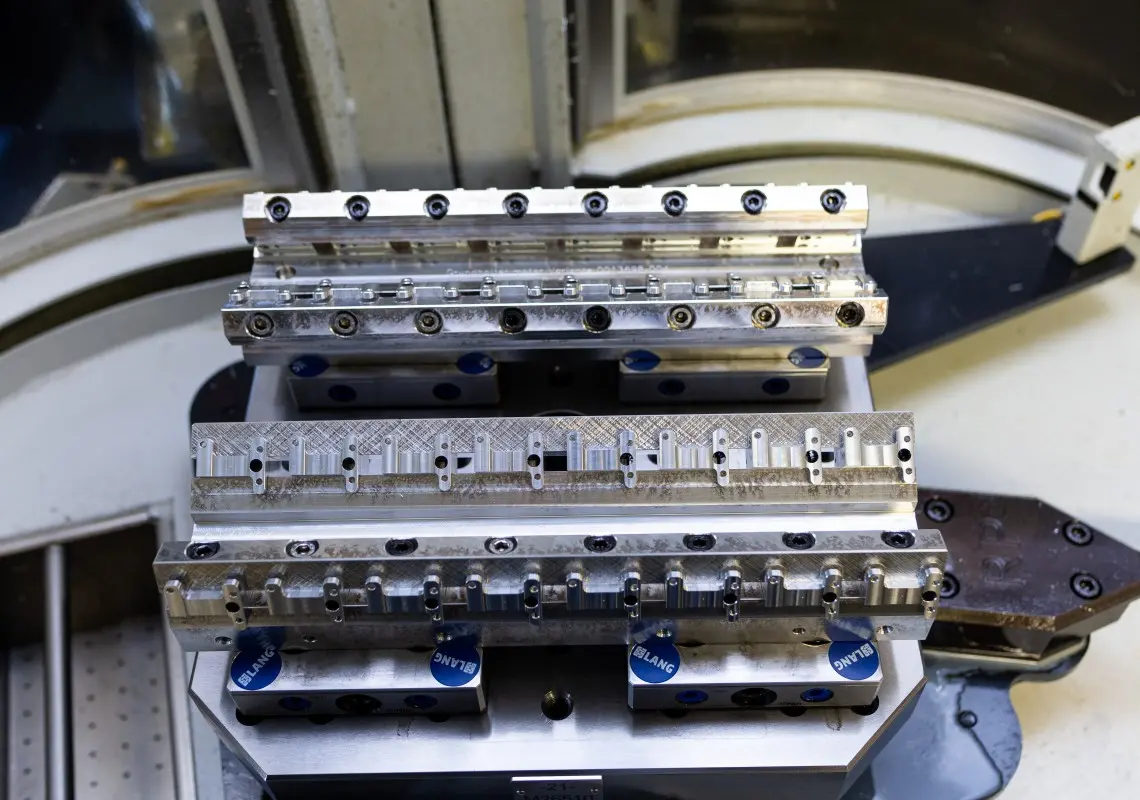

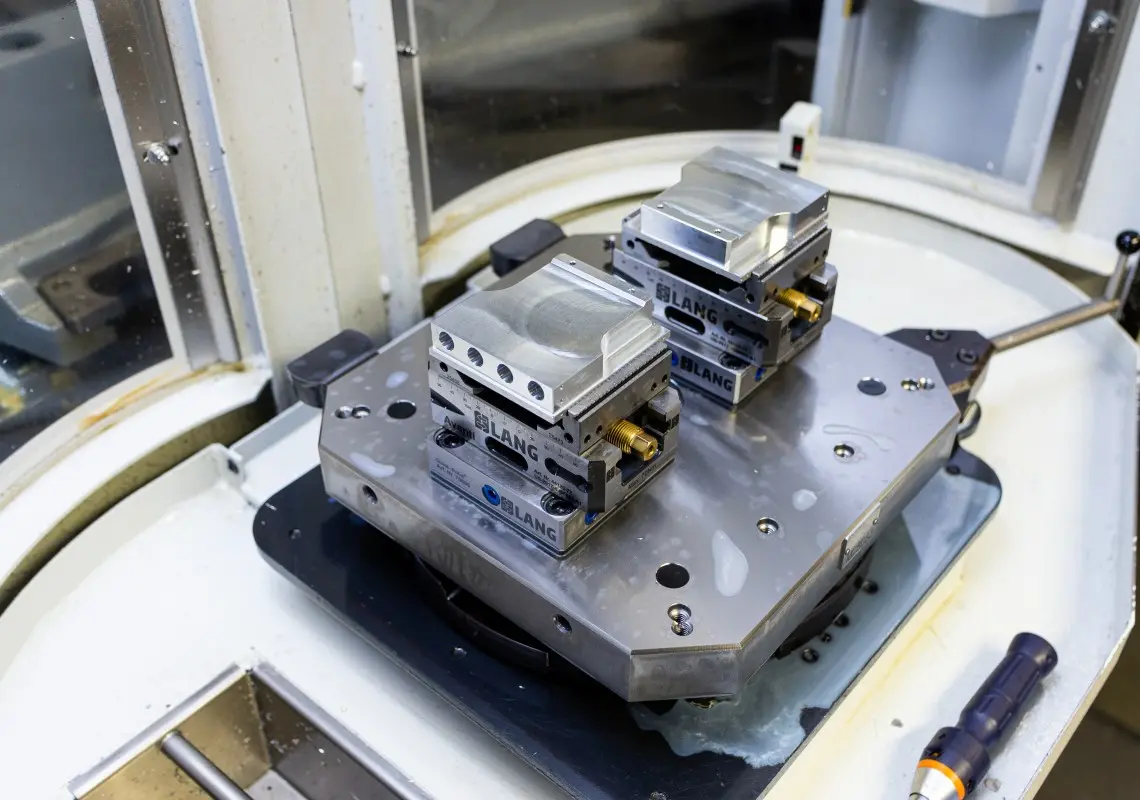

Application pictures
