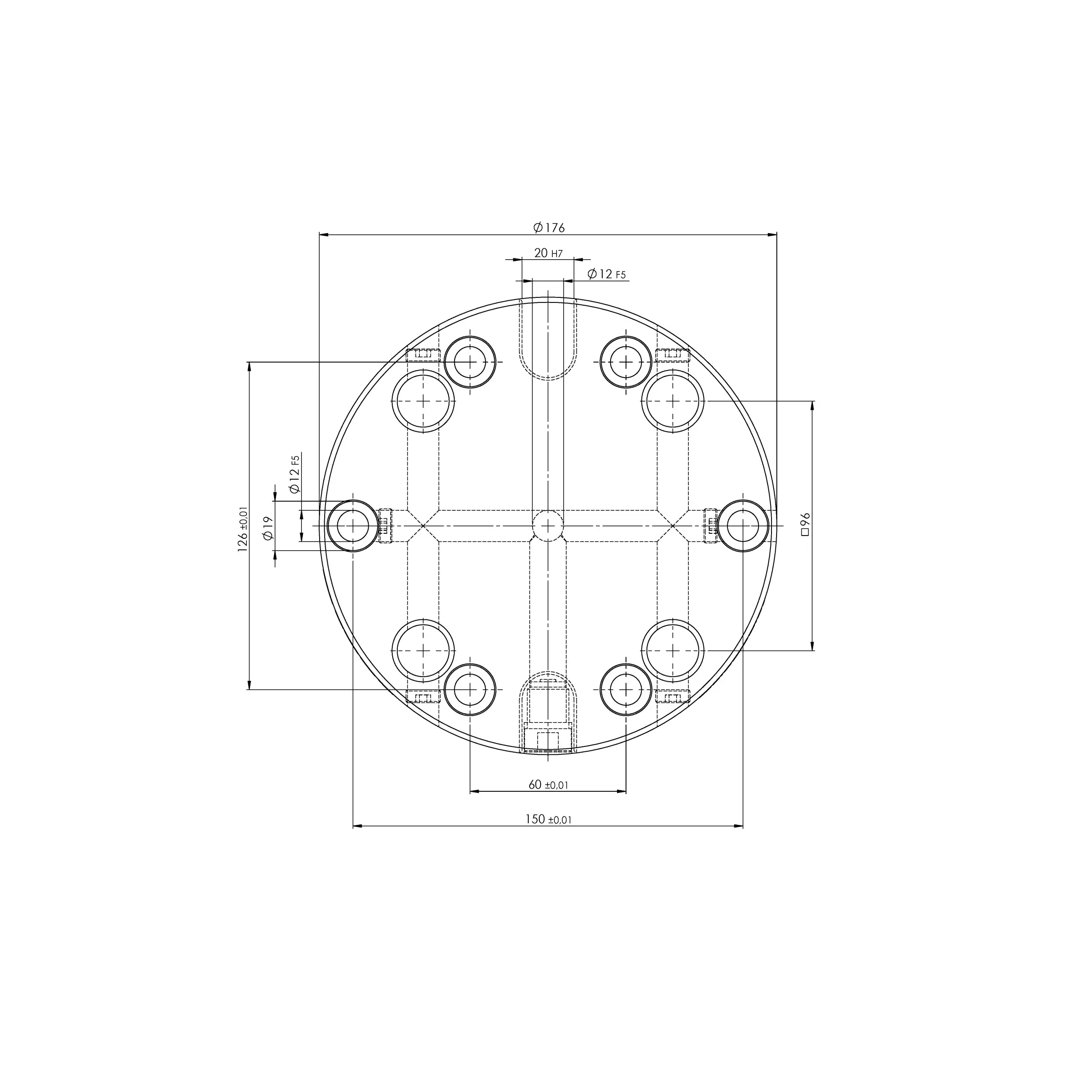

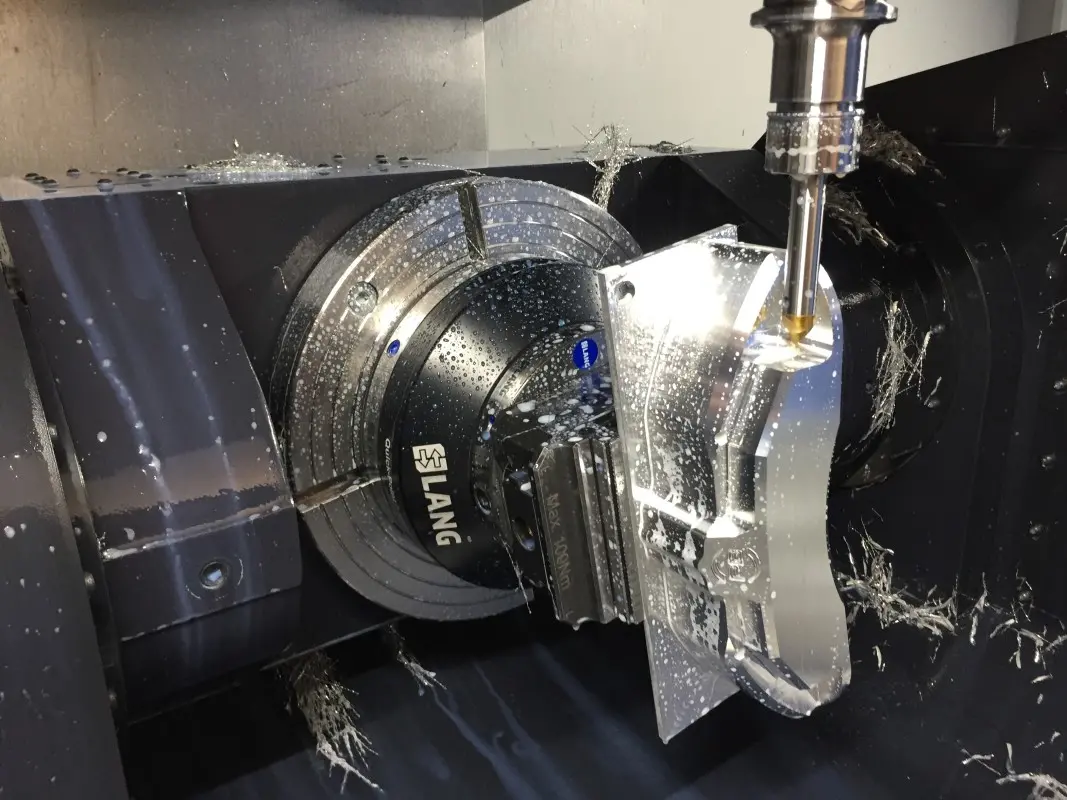

Quick•Point® 96, Round Plate ø 176 x 27 mm, with mounting bores for 63 mm slot distance and 150 mm distance

Product Code - 45800

Add To Inquiry List

Quick•Point® 96, Round Plate ø 176 x 27 mm, with mounting bores for 63 mm slot distance and 150 mm distance

Product Code - 45800

Add To Inquiry List

Catalogues

1. 2025 Lang Catalogue
2. Zero-Point Clamping
3. Lang MakroGrip Ultra
4. Lang Workholding
5. 2017 LANG Workholding
6. Automation
7. 2025 Lang Speciality Products
8. LANG Aero & RoboTrex Compact.

Key data at a glance

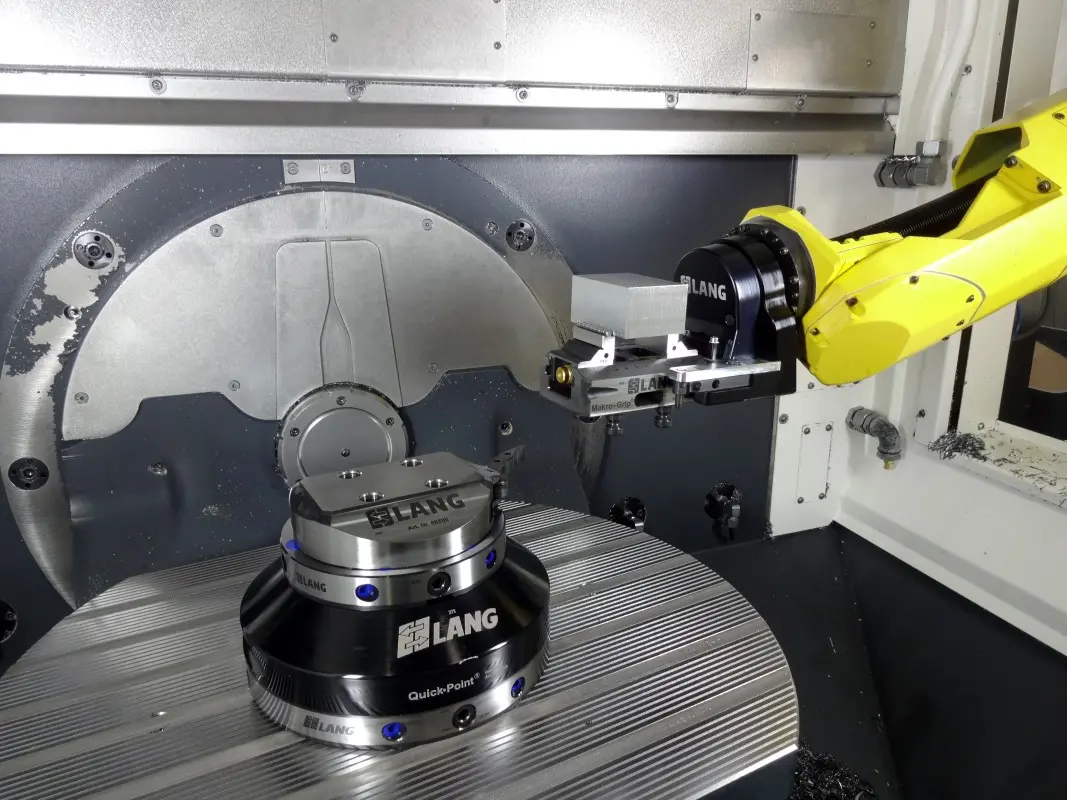

The smallest of all Quick•Point® 96 round plates has a total of six mounting holes. Four holes that can be used for machine tables with 63 mm slot spacing and additionally two further holes in line, which makes this zero-point plate universally applicable for any other slot table variant. Due to its matching mounting holes, it is the logical and only option for the round Quick•Point® aluminium riser.

Further Information

DIMENSIONS

⌀ 176 x 27 mm (6.93" x 1.06")

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

for 63 mm groove spacing

KEYWAYS

20 H7

M5 INDEXING BORES

No, but possible (service)

PACKAGING UNIT

1 Piece

WEIGHT

4.5 kg (9.92 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

125 mm (4.92")

Width of compatible vice

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

Notice:

Scope of delivery:

1 x Zero-Point Plate 6 x Quick•Point® plastic covers ø 20 mm (item number 45008-20) 4 x

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
