Quick•Point® 52, Single Plate 150 x 116 x 27 mm, with bores 100 x 50 mm and clamping edge

Product Code - 45150

Add To Inquiry List

Quick•Point® 52, Single Plate 150 x 116 x 27 mm, with bores 100 x 50 mm and clamping edge

Product Code - 45150

Add To Inquiry List

Key data at a glance

The Quick•Point® 52 zero-point plate with a clamping edge is primarily used in conjunction with the Quick•Point® risers made of aluminium, which contains threaded holes to match the hole pattern of the zero-point plate. In addition, this variant is often used on customized risers and clamping devises, in order to be able to use LANG vises or fixtures with Quick•Point® clamping studs.

Further Information

DIMENSIONS

150 x 116 x 27 mm (5.91" x 4.57" x 1.06")

CLAMPING EDGE INCLUDED

Yes

CROSS-PLATE GRID POSSIBLE

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

100 x 50 mm

KEYWAYS

20 H7

M5 INDEXING BORES

Yes

PACKAGING UNIT

1 Set

WEIGHT

2.8 kg (6.17 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

77 mm (3.03")

Width of compatible vice

Clamping stud size

16 mm (0.63")

Diameter of suitable clamping studs

Quick-Lock applicable

Yes

The fast actuation system can be attached

Notice:

Scope of delivery:

1 x Zero-Point plate 4 x 4 x

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

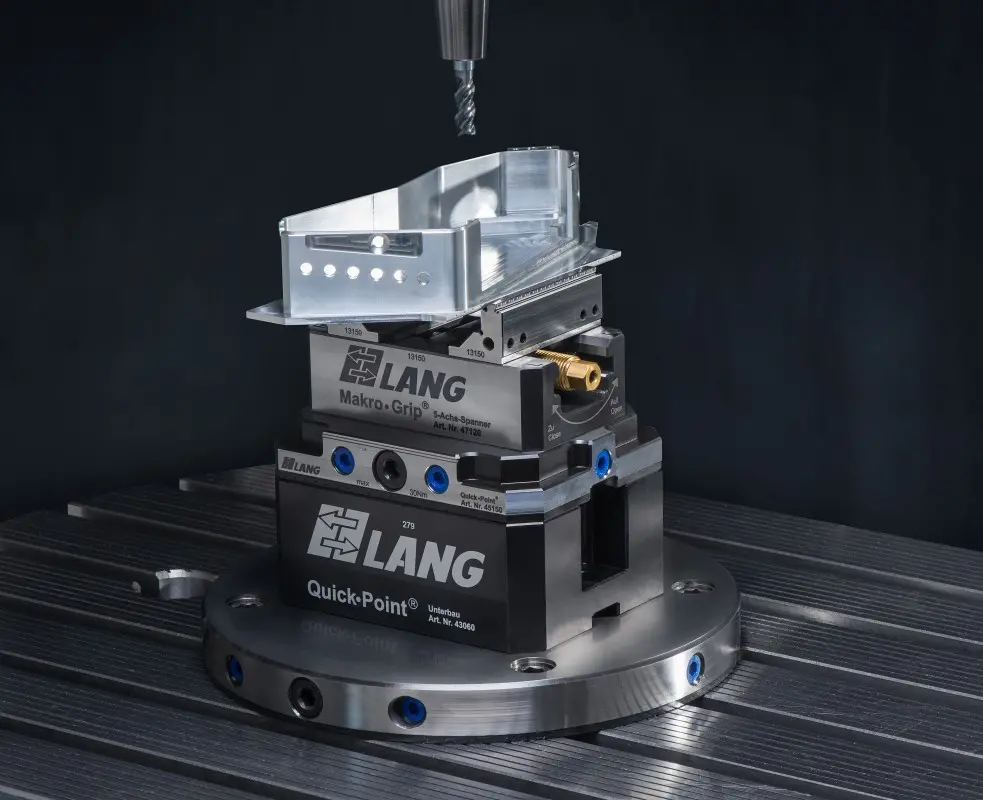

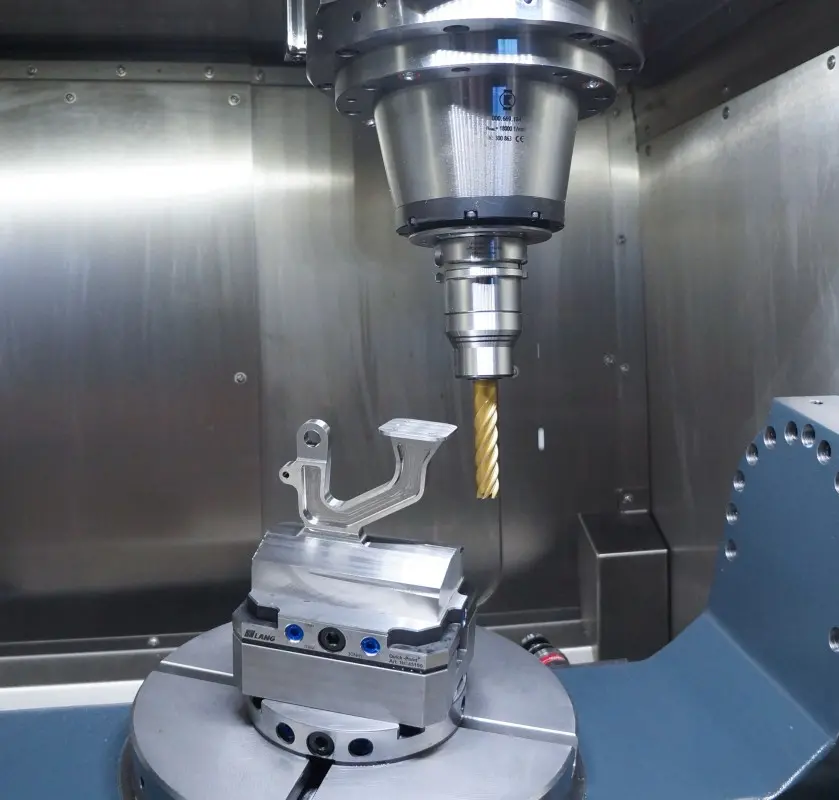

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
