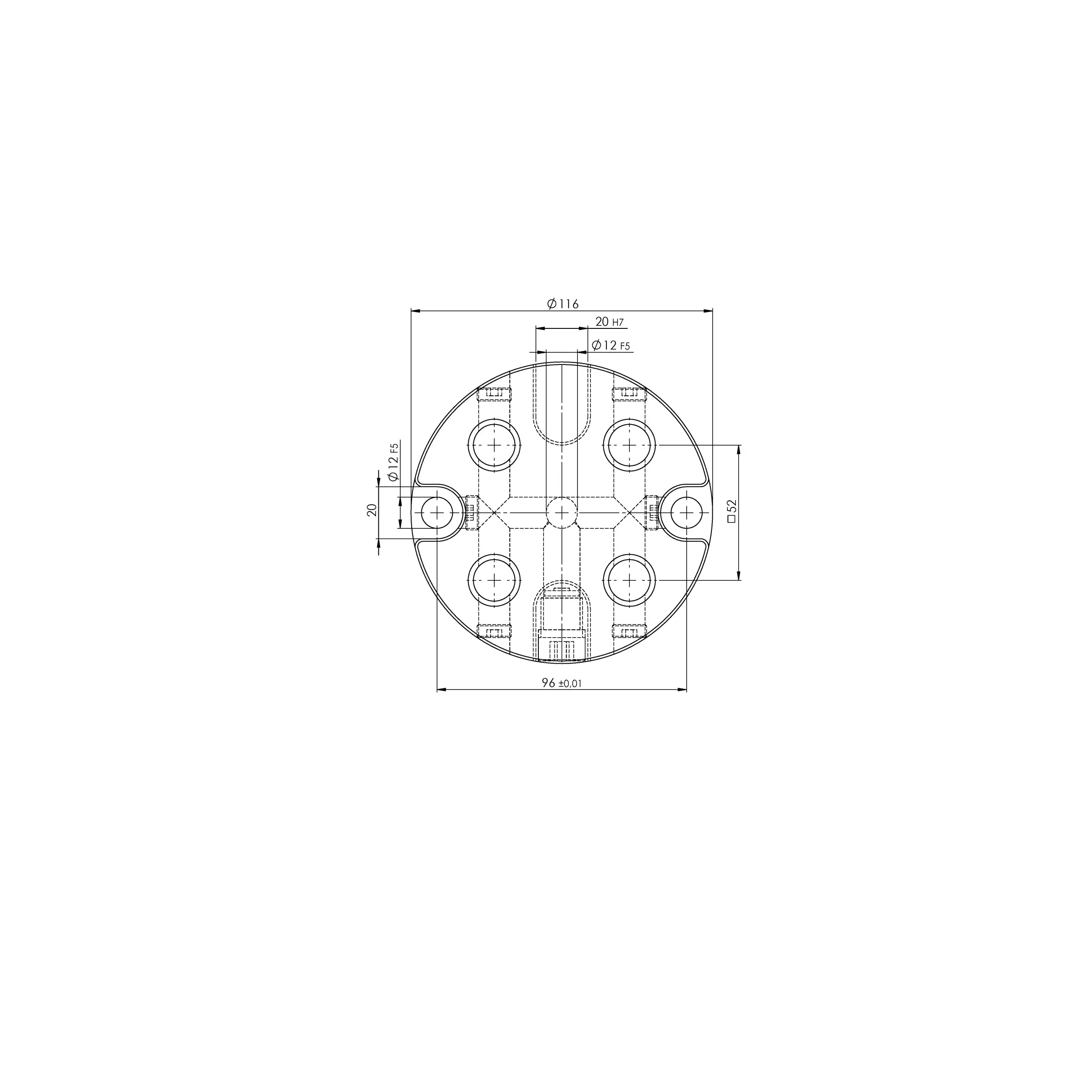

Quick•Point® 52, Round Plate ø 116 x 27 mm, with mounting bores at a distance of 96 mm
Product Code - 45750
Key data at a glance
Due to its size, this round plate is a solution for small tables and axes. With a diameter of only 116 mm, it is the most compact of all Quick•Point® zero-point plates. It has 2 mounting holes at a distance of 96 mm and is often adapted to small sub-plates.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
77 mm (3.03")
Width of compatible vice
Clamping stud size
16 mm (0.63")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
