Quick•Point® 96, Round Plate ø 246 x 27 mm, with mounting bores for machine tables with cross slot
Product Code - 45890
Key data at a glance

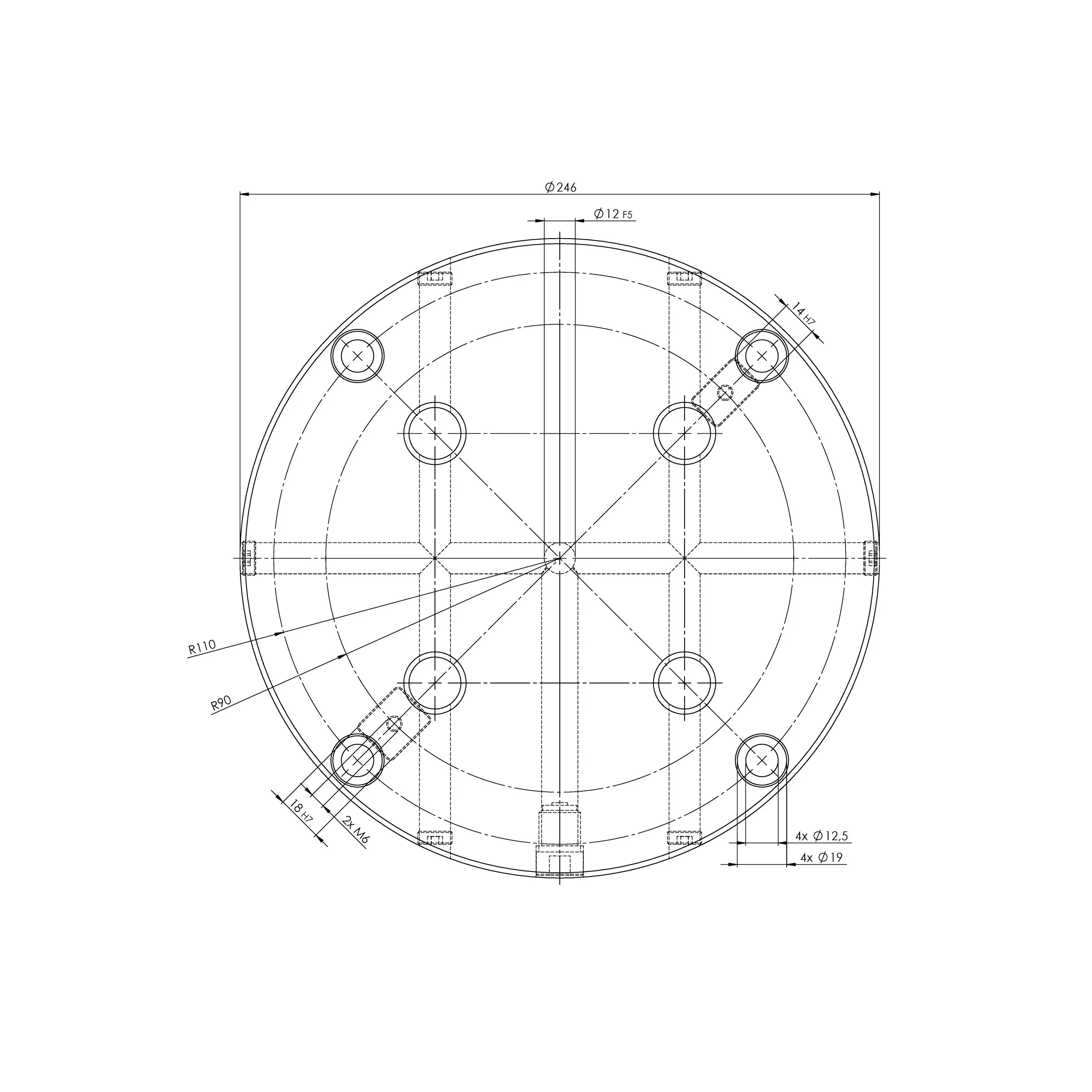

The largest round Quick•Point® single plate is prepared for mounting on machine tables with cross-shaped slots, such as Matsuura or Hermle, thanks to its mounting holes (4x 90° / radius 110 mm). On its underside, there are two keyways with 14H7 and 18H7.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
125 mm (4.92")
Width of compatible vice
Clamping stud size
20 mm (0.79")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
