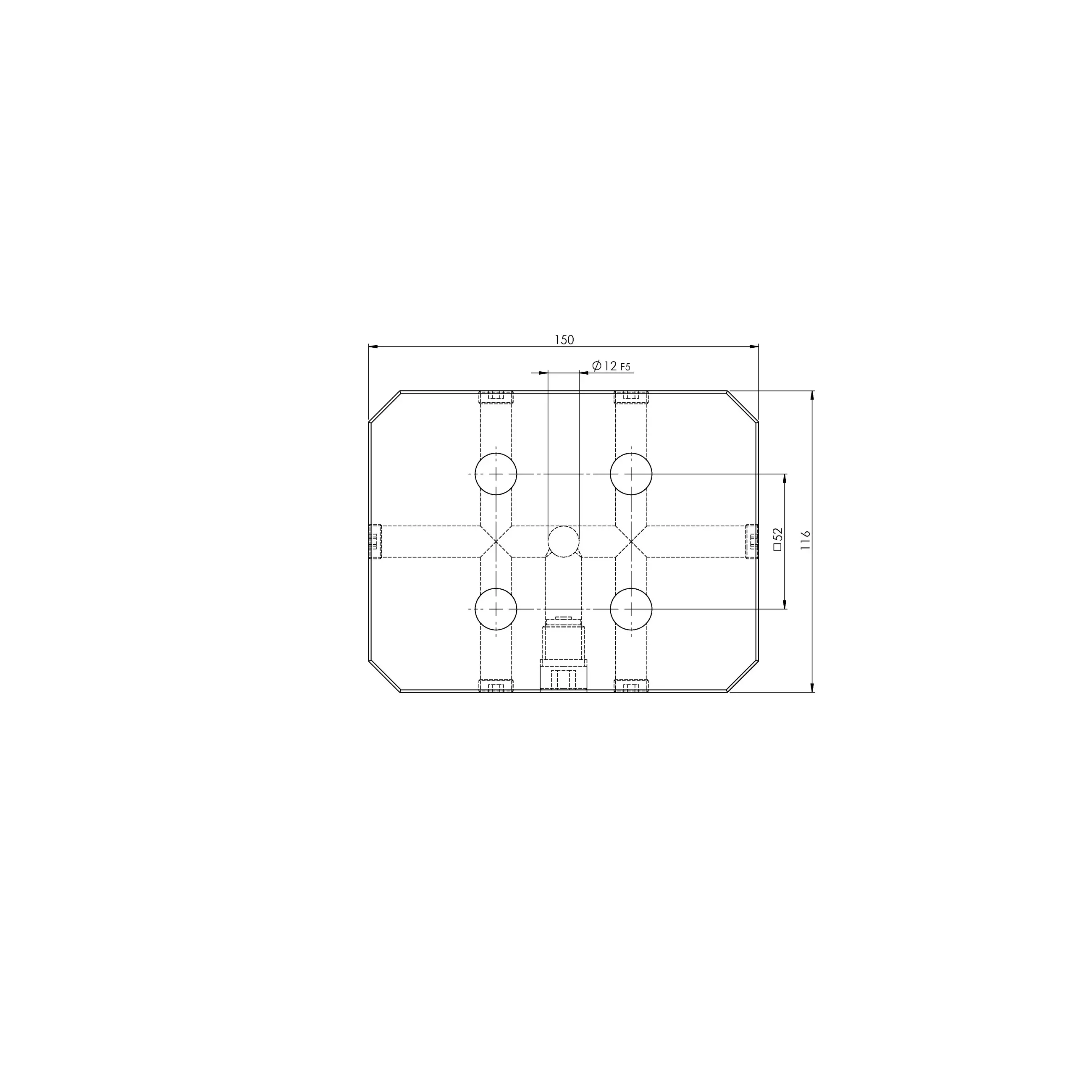

Quick•Point® 52, Single Plate 150 x 116 x 27 mm, without mounting bores
Product Code - 45151
Key data at a glance
The Quick•Point® 52 plate with the dimensions 150 x 116 x 27 mm and without predefined mounting holes can be individually adapted to your own clamping fixtures, trunnions or risers.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
77 mm (3.03")
Width of compatible vice
Clamping stud size
16 mm (0.63")
Diameter of suitable clamping studs
Quick-Lock applicable
yes
The fast actuation system can be attached
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
