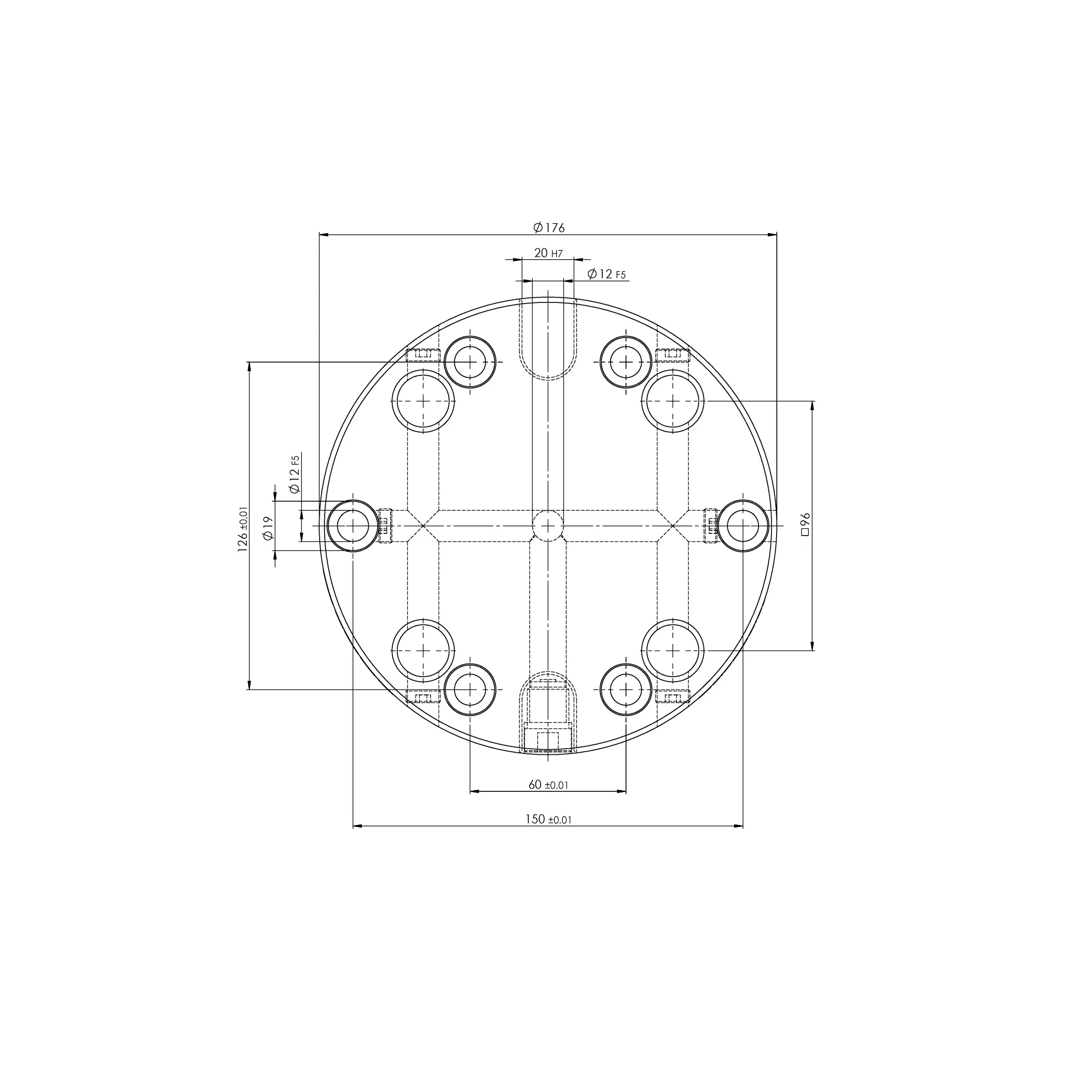

Quick•Point® 96, Round Plate ø 176 x 27 mm, with mounting bores for 63 mm slot distance and 150 mm distance
Product Code - 45800
Key data at a glance
The smallest of all Quick•Point® 96 round plates has a total of six mounting holes. Four holes that can be used for machine tables with 63 mm slot spacing and additionally two further holes in line, which makes this zero-point plate universally applicable for any other slot table variant. Due to its matching mounting holes, it is the logical and only option for the round Quick•Point® aluminium riser.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
125 mm (4.92")
Width of compatible vice
Clamping stud size
20 mm (0.79")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System

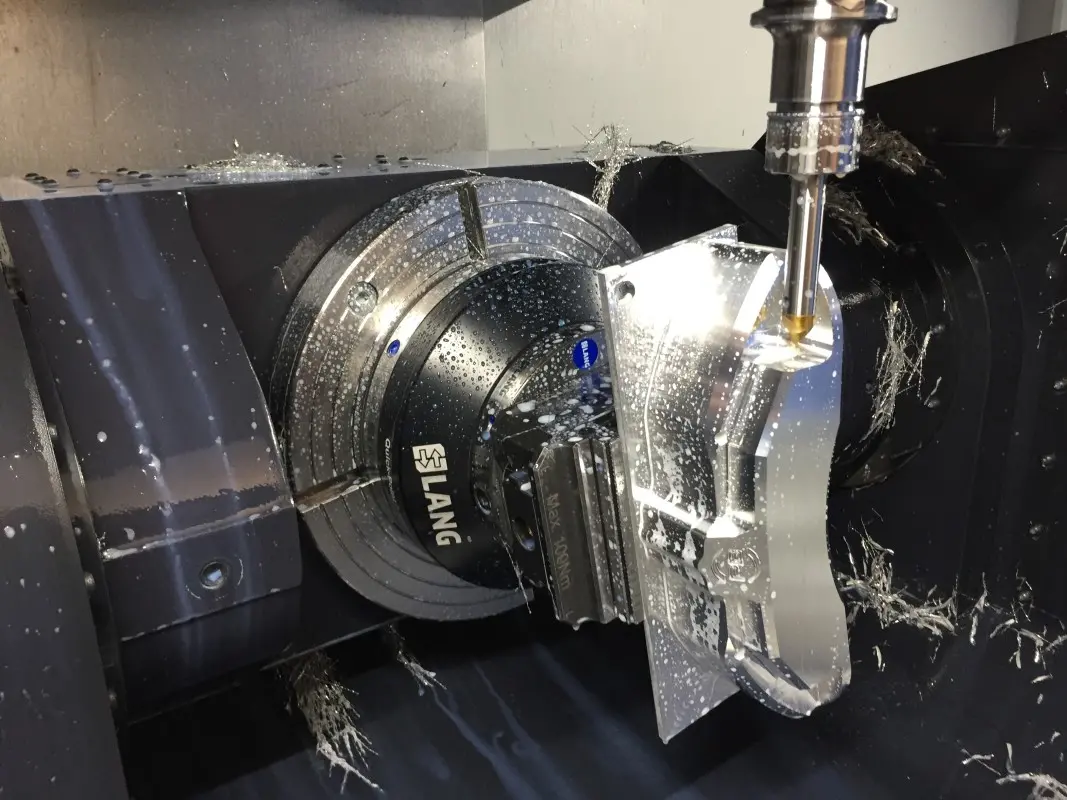

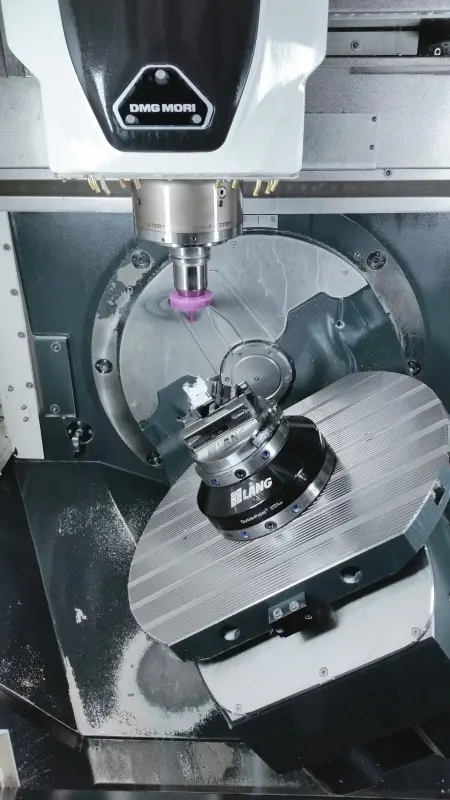

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
