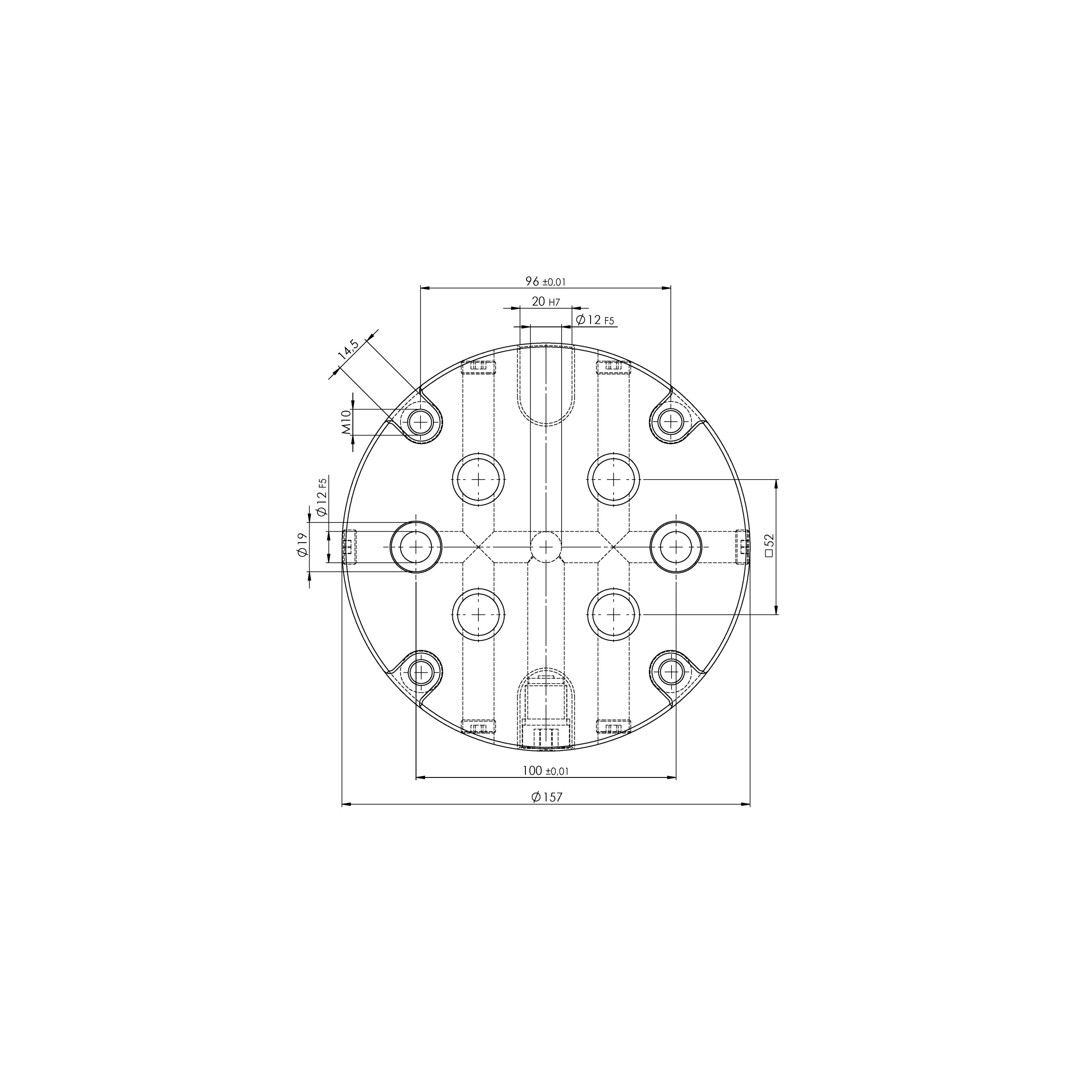

Quick•Point® 52, Round Plate ø 157 x 27 mm, with mounting bores at a distance of 100 mm
Product Code - 45900
Key data at a glance

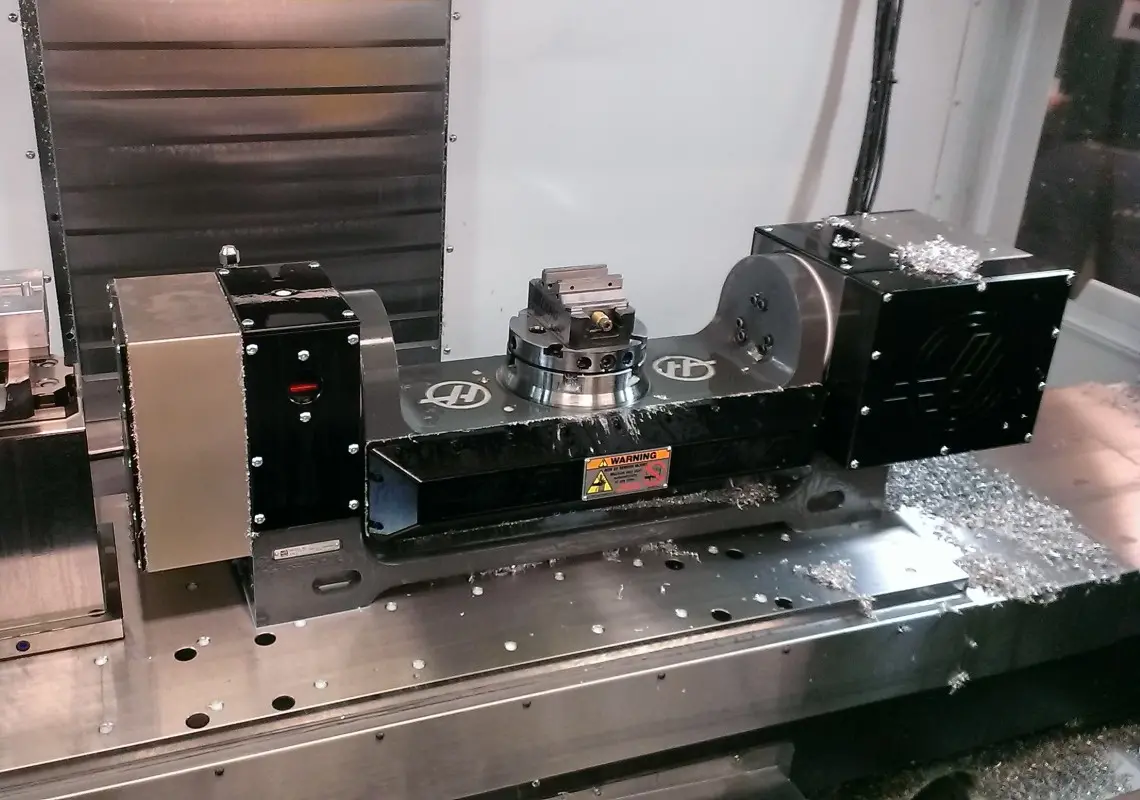

This Quick•Point® 52 variant with a diameter of 157 mm can be used flexibly on 4th axis applications, slot tables and machine tables with grid holes thanks to its two mounting holes at 100 mm intervals. In addition, its M 10 thread offers the possibility of mounting Quick•Point® 96 clamping studs, in order to be converted into a receiver plate.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
77 mm (3.03")
Width of compatible vice
Clamping stud size
16 mm (0.63")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System

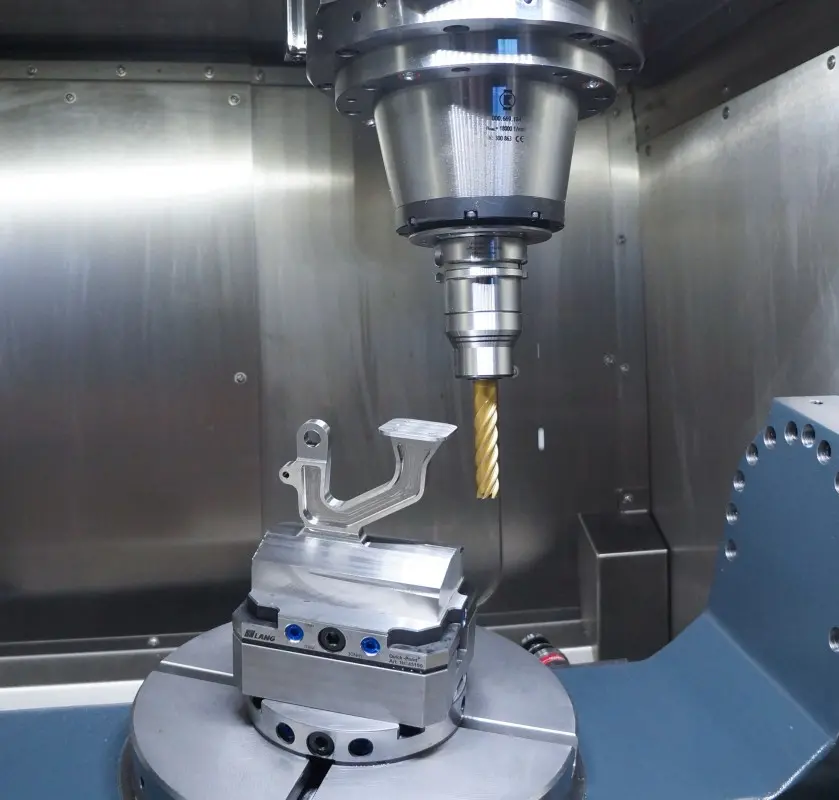

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
