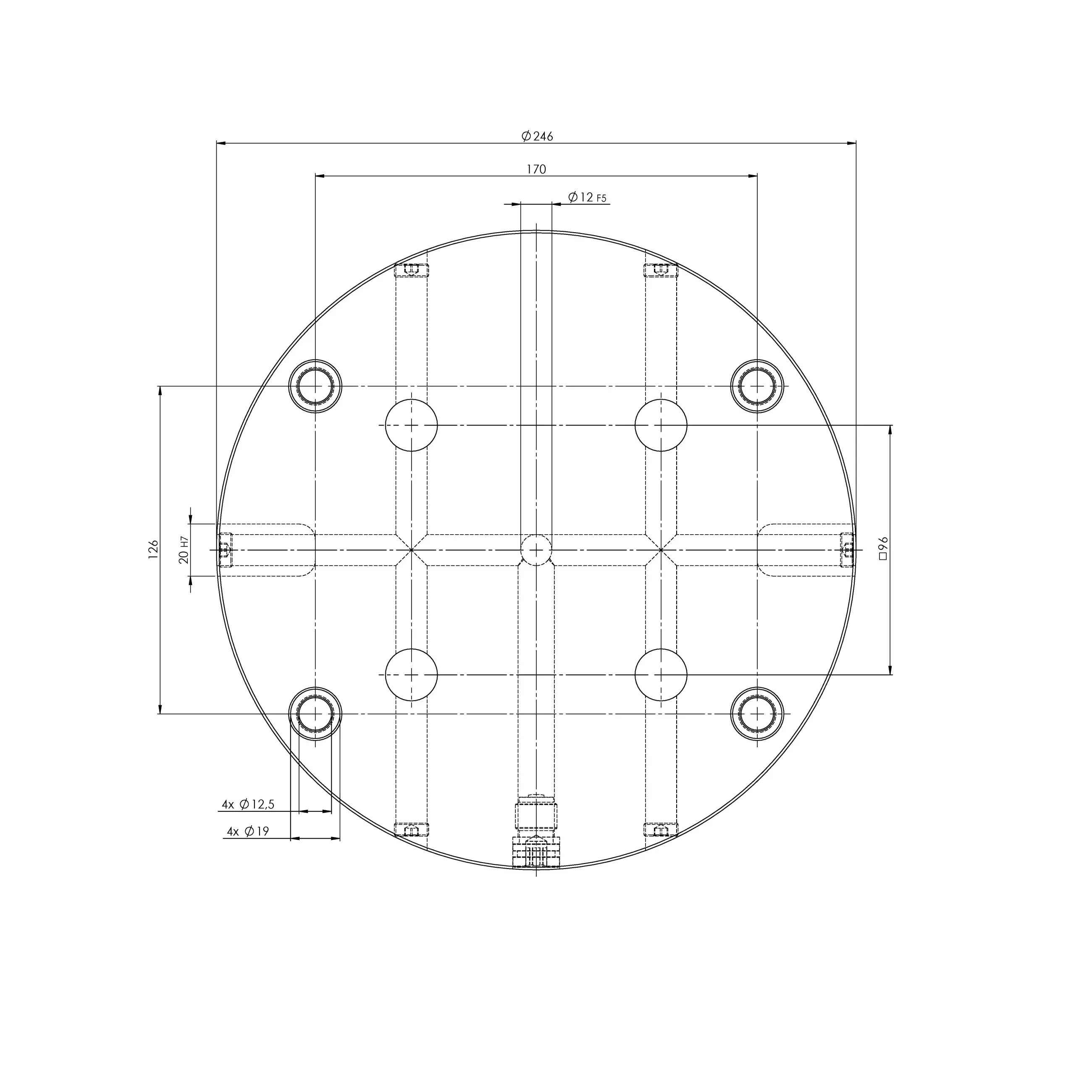

Quick•Point® 96, Round Plate ø 246 x 27 mm, with mounting bores for 63 mm slot distance
Product Code - 45863
Key data at a glance
This round plate is a visually attractive solution for zero-point clamping on round machine tables with a slot spacing of 63 mm. With a diameter of 246 mm, it can act flush as a base for a round Quick•Point® automation zero-point device for RoboTrex 96, for example.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
125 mm (4.92")
Width of compatible vice
Clamping stud size
20 mm (0.79")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
