Quick•Point® 96, Single Plate 192 x 156 x 27 mm, with bores 150 x 100 / 50 mm and clamping edge

Product Code - 45400

Add To Inquiry List

Quick•Point® 96, Single Plate 192 x 156 x 27 mm, with bores 150 x 100 / 50 mm and clamping edge

Product Code - 45400

Add To Inquiry List

Key data at a glance

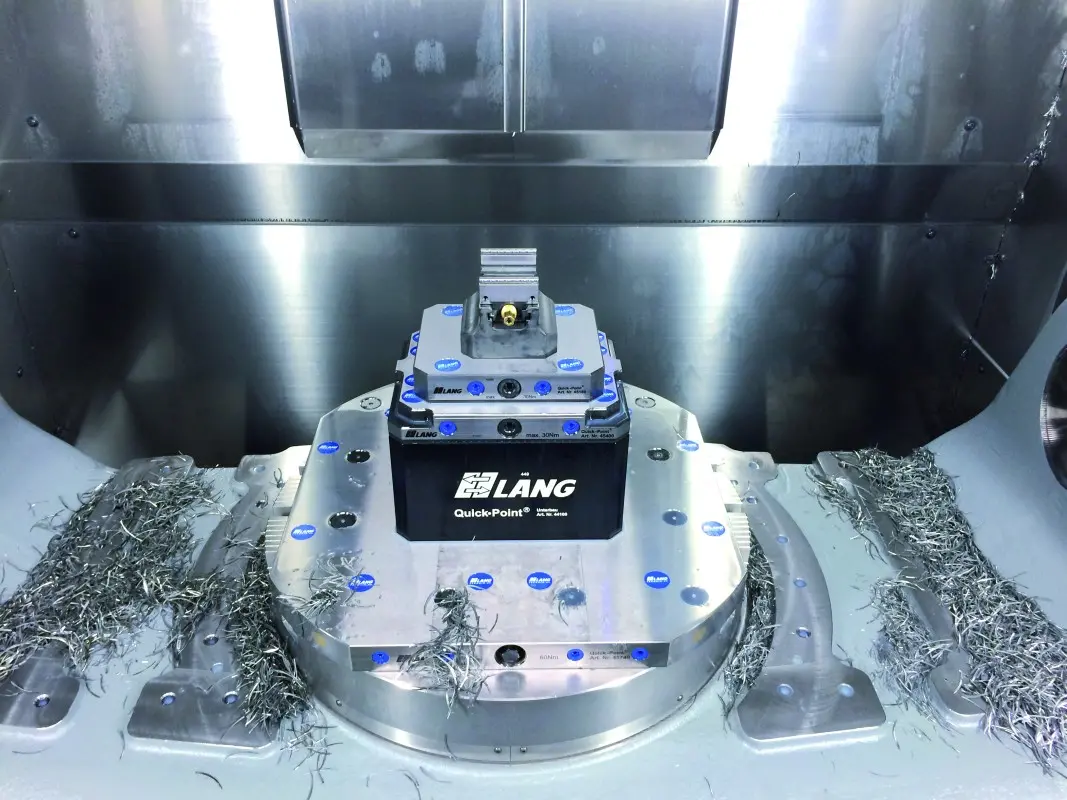

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose. The Quick•Point® 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture. Its mounting holes are also suitable for the Quick•Point® riser made of aluminium, which can be used to improve accessibility for 5-sided machining.

Further Information

DIMENSIONS

192 x 156 x 27 mm (7.56" x 6.14" x 1.06")

CLAMPING EDGE INCLUDED

Yes

CROSS-PLATE GRID POSSIBLE

CLAMPING TYPE

Single clamping

CLAMPING UNITS

1-fold

MOUNTING BORES

at 96 mm distance

KEYWAYS

20 H7

M5 INDEXING BORES

Yes

PACKAGING UNIT

1 Set

WEIGHT

5.2 kg (11.46 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

125 mm (4.92")

Width of compatible vice

Clamping stud size

20 mm (0.79")

Diameter of suitable clamping studs

Quick-Lock applicable

yes

The fast actuation system can be attached

Notice:

Scope of delivery:

1 x Zero-Point plate 8 x Quick•Point® plastic covers ø 20 mm (item number 45008-20) 4 x 45096-20: Cover Plugs

ø 20 mm

for 96 mm spacing

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

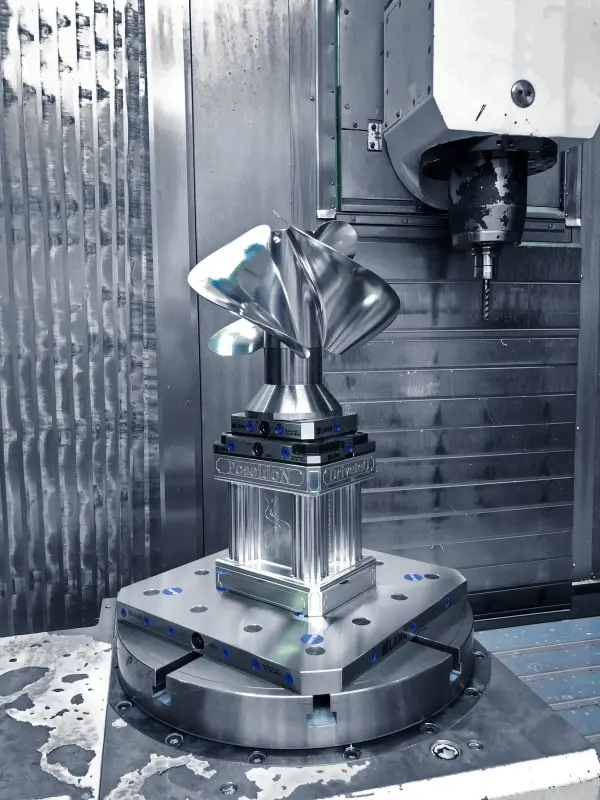

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
