Quick•Point® 96, Grid Plate 192 x 192 x 27 mm, with mounting bores for 63 mm slot distance
Product Code - 45763
Key data at a glance

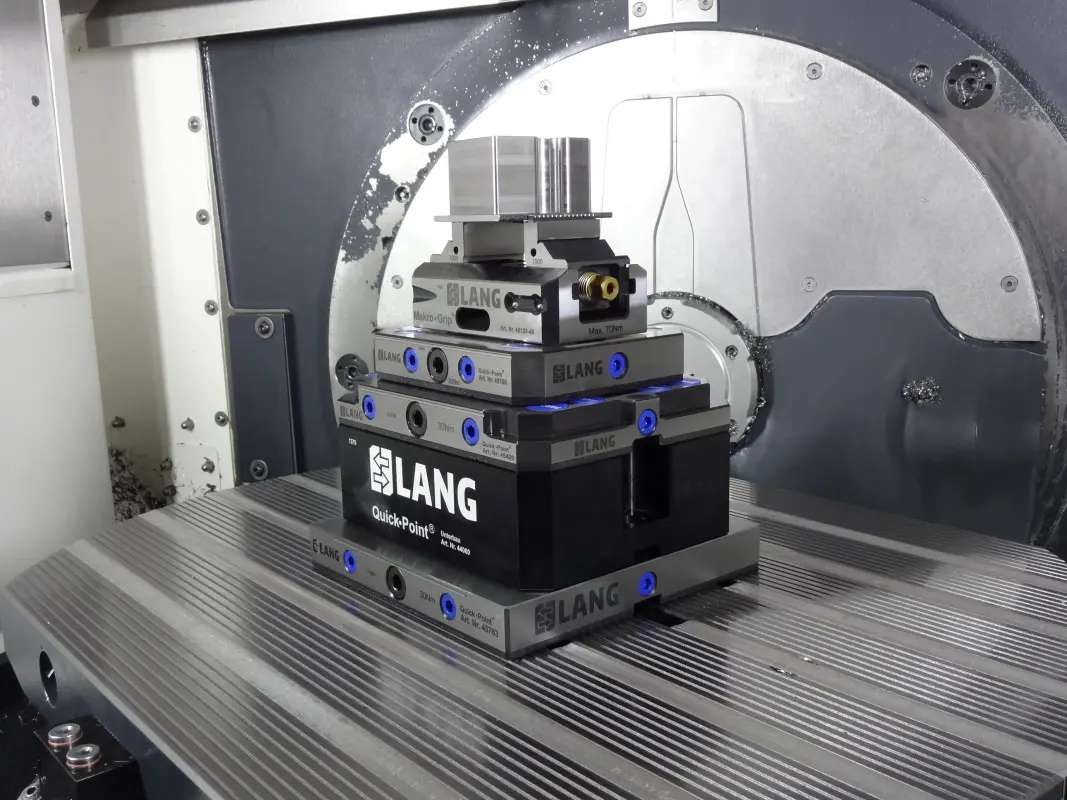

This grid plate is predestined for machine tables with a slot spacing of 63 mm. Due to its external dimensions of 192 x 192 mm, the operator is able to create a continuous 96 mm zero-point grid system by lining up several of these plates and placing the workholding device across the plates. Likewise, this plate can be combined with multiple grid plates, such as the 2- or 4-fold grid plate.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
Width of compatible vice
Clamping stud size
Diameter of suitable clamping studs
Quick-Lock applicable
Yes
The fast actuation system can be attached
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
