Quick•Point® 96, Round Plate ø 196 x 27 mm, without mounting bores
Product Code - 45820
Key data at a glance

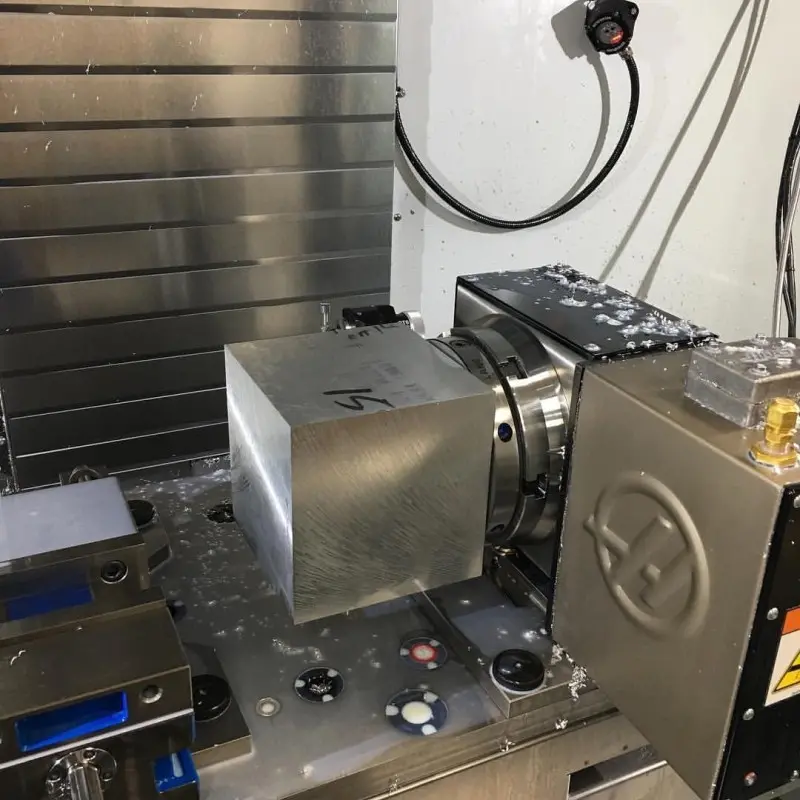

The Quick•Point® 96 round plate with a diameter of 196 mm can be provided with individual mounting holes to attach it to rotary tables and trunnions. Example possibilities are Haas TR 200, Fanuc Robodrill/Häberle and Lehmann rotary tables, as well as the rotary table of the Hurco VMX 42 with cross-shaped slot.
Further Information
More Options:
Torque
30 Nm
Maximum allowed torque
Vice size
125 mm (4.92")
Width of compatible vice
Clamping stud size
20 mm (0.79")
Diameter of suitable clamping studs
Notice:
-
Scope of delivery:
Benefits Quick•Point® Single Plates
Quick•Point® Zero-Point Clamping System
The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.
