Quick•Point® 96, Grid Plate 192 x 192 x 27 mm, with mounting bores for Quick•Tower tombstone

Product Code - 75710

Add To Inquiry List

Quick•Point® 96, Grid Plate 192 x 192 x 27 mm, with mounting bores for Quick•Tower tombstone

Product Code - 75710

Add To Inquiry List

Key data at a glance

Just like the smaller version with the Art. No. 75600, this grid plate also has predefined mounting holes for the Quick•Tower spaced at 150 x 120 mm. Thanks to its fits, it can be plugged in via bushings and aligned with high precision on the Quick•Tower.

Further Information

DIMENSIONS

192 x 192 x 27 mm (7.56" x 7.56" x 1.06")

CLAMPING EDGE INCLUDED

CROSS-PLATE GRID POSSIBLE

Yes

CLAMPING UNITS

1-fold

MOUNTING BORES

for 150 x 120 mm hole spacing (suitable for Quick-Tower)

KEYWAYS

M5 INDEXING BORES

Yes

PACKAGING UNIT

WEIGHT

7.5 kg (16.53 lbs)

MATERIAL

Steel

Grid System

More Options:

Torque

30 Nm

Maximum allowed torque

Vice size

Width of compatible vice

Clamping stud size

Diameter of suitable clamping studs

Quick-Lock applicable

Yes

The fast actuation system can be attached

Notice:

Scope of delivery:

1 x Zero-Point plate 4 x Quick•Point® plastic covers ø 20 mm (item number 45008-20) 4 x 2 x 4 x Socket head screw M10 x 35

Benefits Quick•Point® Single Plates

Variety of versions Solutions for all types of machines and rotary tables available

Simple Operation Easy handling thanks to the simple, mechanical functional principle

Modifiability High degree of customisability

Quick•Point® Zero-Point Clamping System

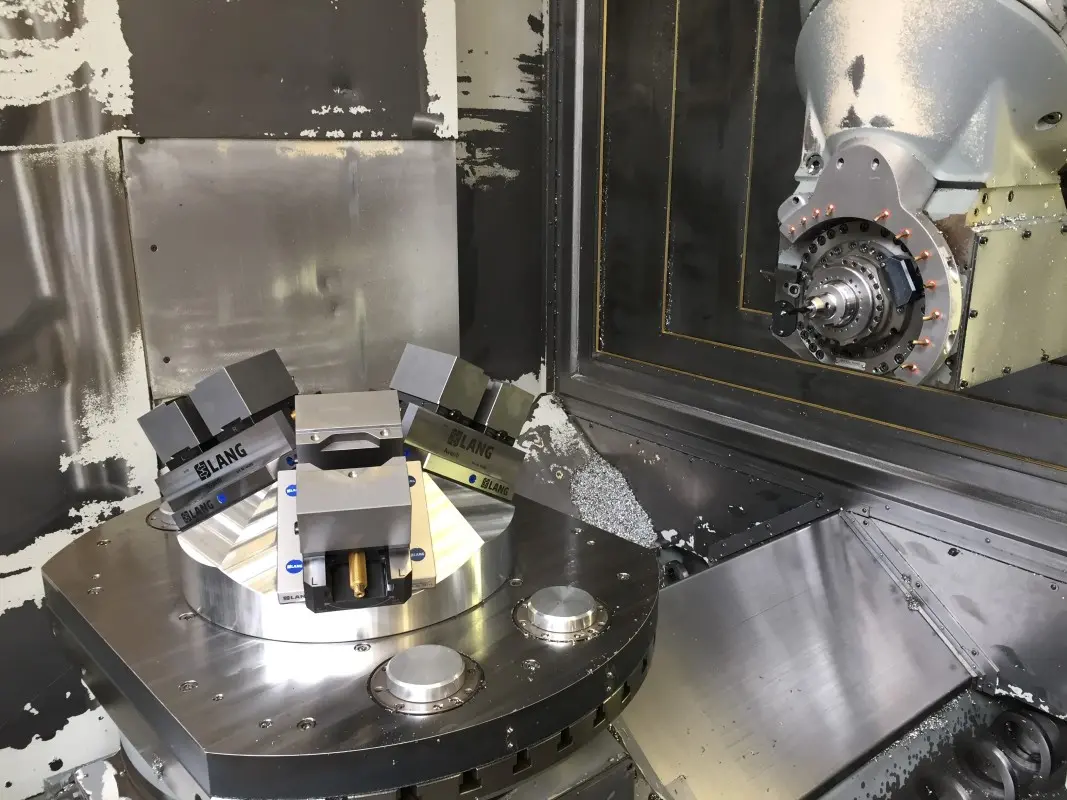

The Quick•Point® Zero-Point Clamping System is characterized by a particularly wide range of variations and provides a solution for any machine tool. Whether round, rectangular or square in shape, for single or multiple clamping, it can be universally used in vertical and horizontal machining centers, on 3- and 5-axis tables and 4th axis rotary or trunnion systems.

Flexibility Thanks to the wide range of variations Quick•Point® can be retrofitted to any machine tool.

Easy operation The simple and robust mechanical principle and the small number of components ensure maximum durability with little maintenance.

Modularity Whether changing the system size or using additional zero-point components, Quick•Point® can be supplemented and expanded as required.
